D–8 Maintenance and Service Guide
Connector Pin Assignments
Table D-9

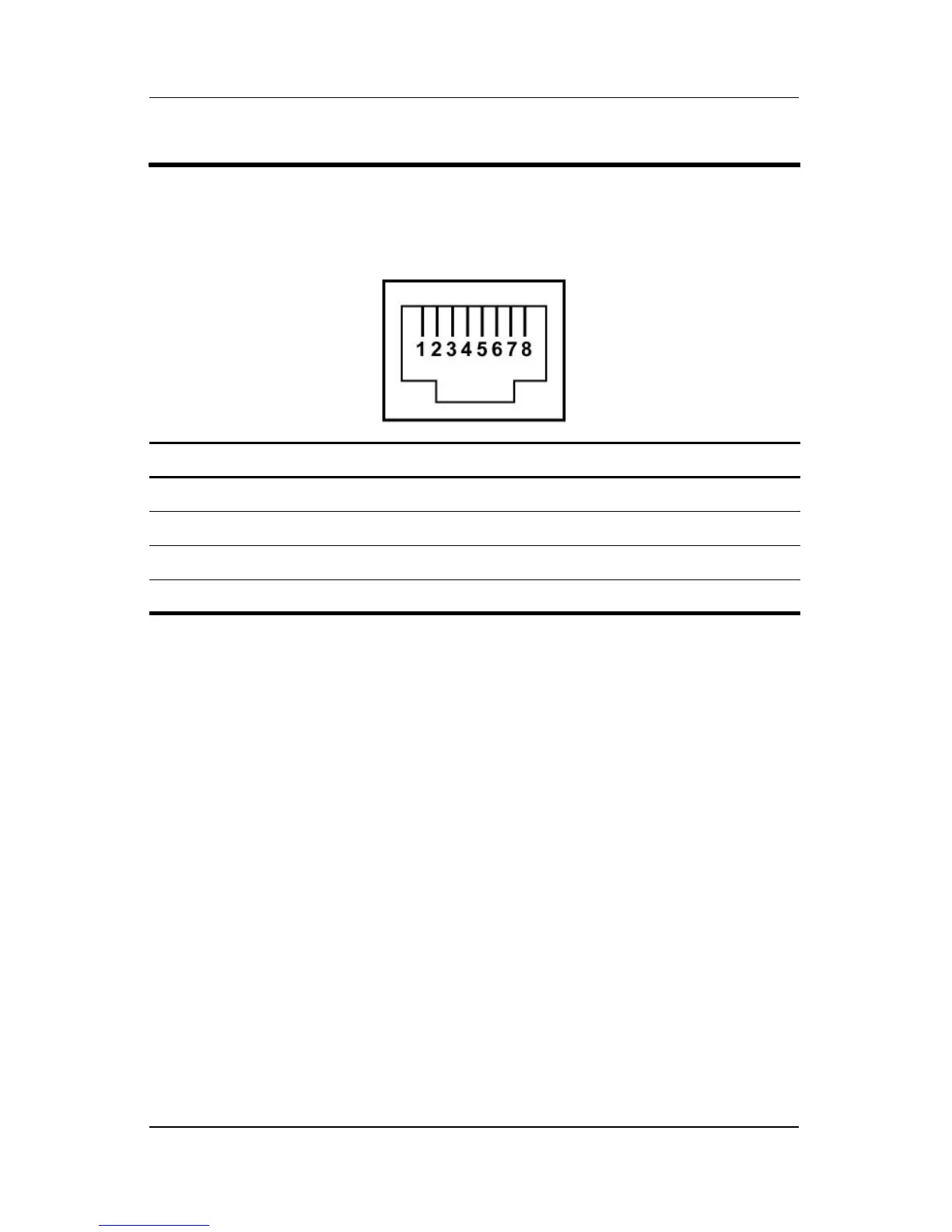

RJ-45 (Network)
Pin Signal Pin Signal
1 Transmit + 5 Unused
2 Transmit – 6 Receive –
3 Receive + 7 Unused
4 Unused 8 Unused
