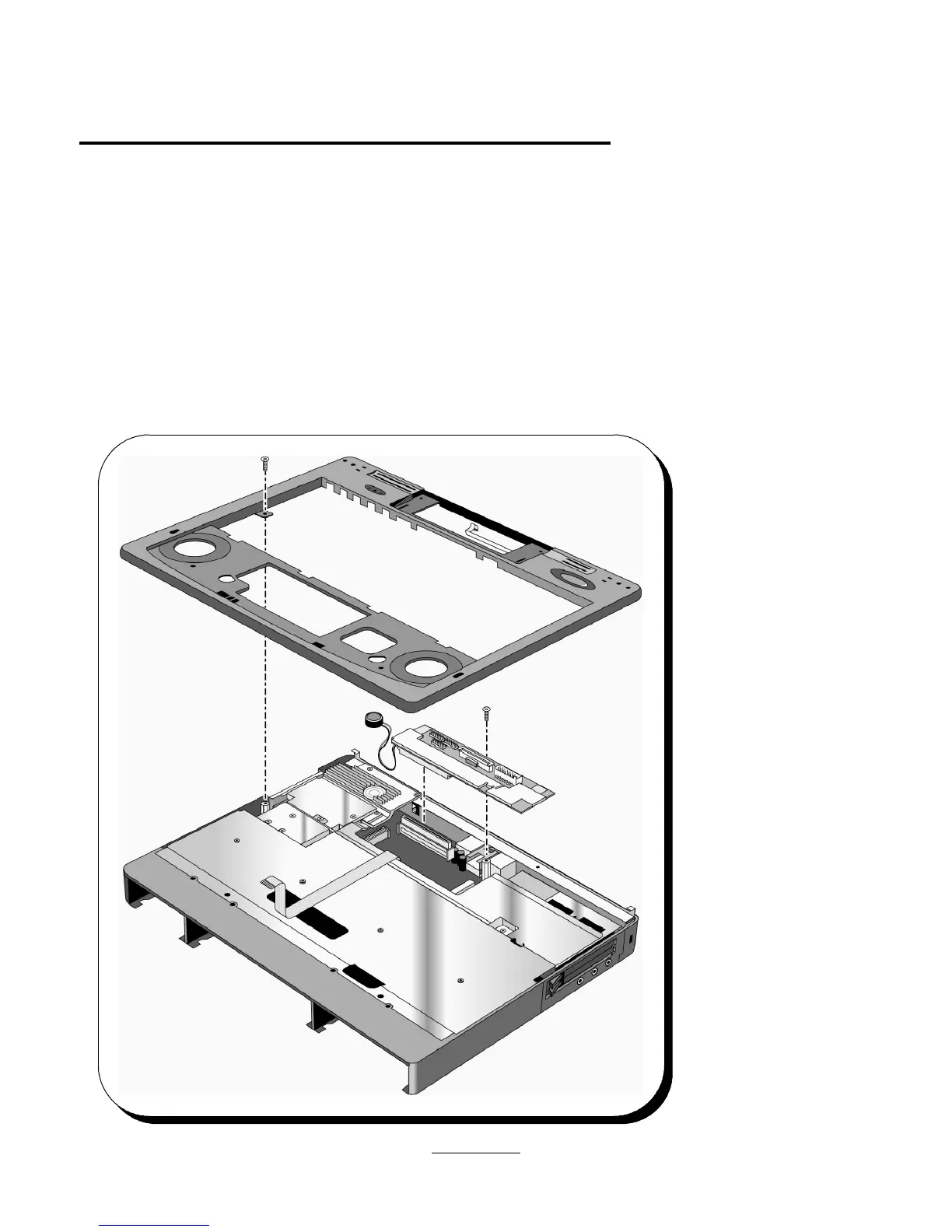

Removal of KBD Shielding Plate
To remove the KBD Shielding Plate, first follow the instructions above to remove the HDD Drive, Center Bay Module (FDD Module, CD-ROM
Assy, or Enhanced Li-Ion Battery), Standard Li-Ion Battery, Palmrest Assy, Keyboard, PCA PT-DC, Upper Chassis Case, PCA PT-ICON Heat Pipe
Bracket, Heat Pipe, Heat Pipe Spreader, CPU Module, and Heat Sink.
Remove the five screws (Screw ISOT M2 X 6L) that hold the KBD Shielding Plate down.
Reverse the procedure to replace KBD Shielding Plate.
29
