HP P27v G4 User Manual



17

HDMI connector P102

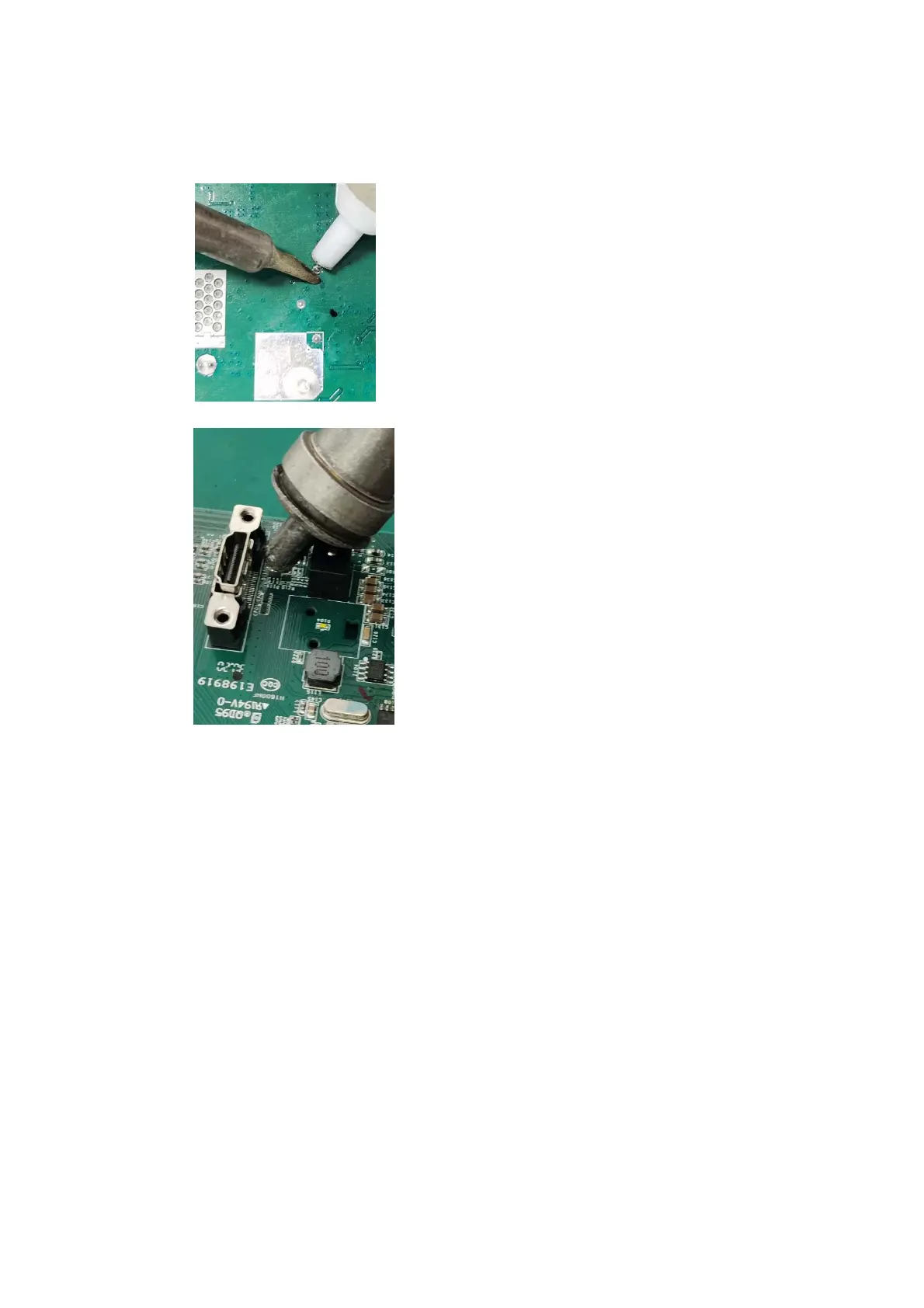

Repair the HDMI connector:
3) Use a soldering iron and a desoldering pump to remove as much solder as possible from the pin.
4) Use a hot air gun to melt the solder on the pins.
5) Lift the P102 connector from the PCB.
6) Place the new component on the PCB. Be sure that it matches the PCB footprint.
7) Solder the new component.
DC connector P103
Repair the DC connector:
8) Use a soldering iron and a desoldering pump to remove as much solder as possible from the pin.

HP P27v G4 Specifications

General

Color gamut	72 %
Pixel pitch	0.311 x 0.311 mm
Screen shape	Flat
Display diagonal	27 \
Display technology	LCD
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000:1
Display number of colors	-
Digital vertical frequency	50 - 60 Hz
Digital horizontal frequency	30 - 80 kHz
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HDMI	Yes
HDMI version	1.4
DisplayPorts quantity	0
AC input voltage	100 - 240 V
Power consumption (standby)	0.5 W
Power consumption (typical)	28 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Depth	47.7 mm
Height	367.7 mm
Display viewable area (HxV)	597.88 x 336.1 mm
Tilt angle range	-5 - 20 °
Panel mounting interface	100 x 100 mm
Product color	Black
Market positioning	Business
Package depth	200.1 mm
Package height	447.7 mm
Package weight	5700 g
Sustainability certificates	ENERGY STAR
Cables included	AC, VGA
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	44.77 mm
Width (with stand)	61.22 mm
Height (with stand)	20.01 mm
Weight (with stand)	4500 g
Depth (without stand)	4.77 mm
Width (without stand)	612.2 mm
Height (without stand)	36.77 mm
