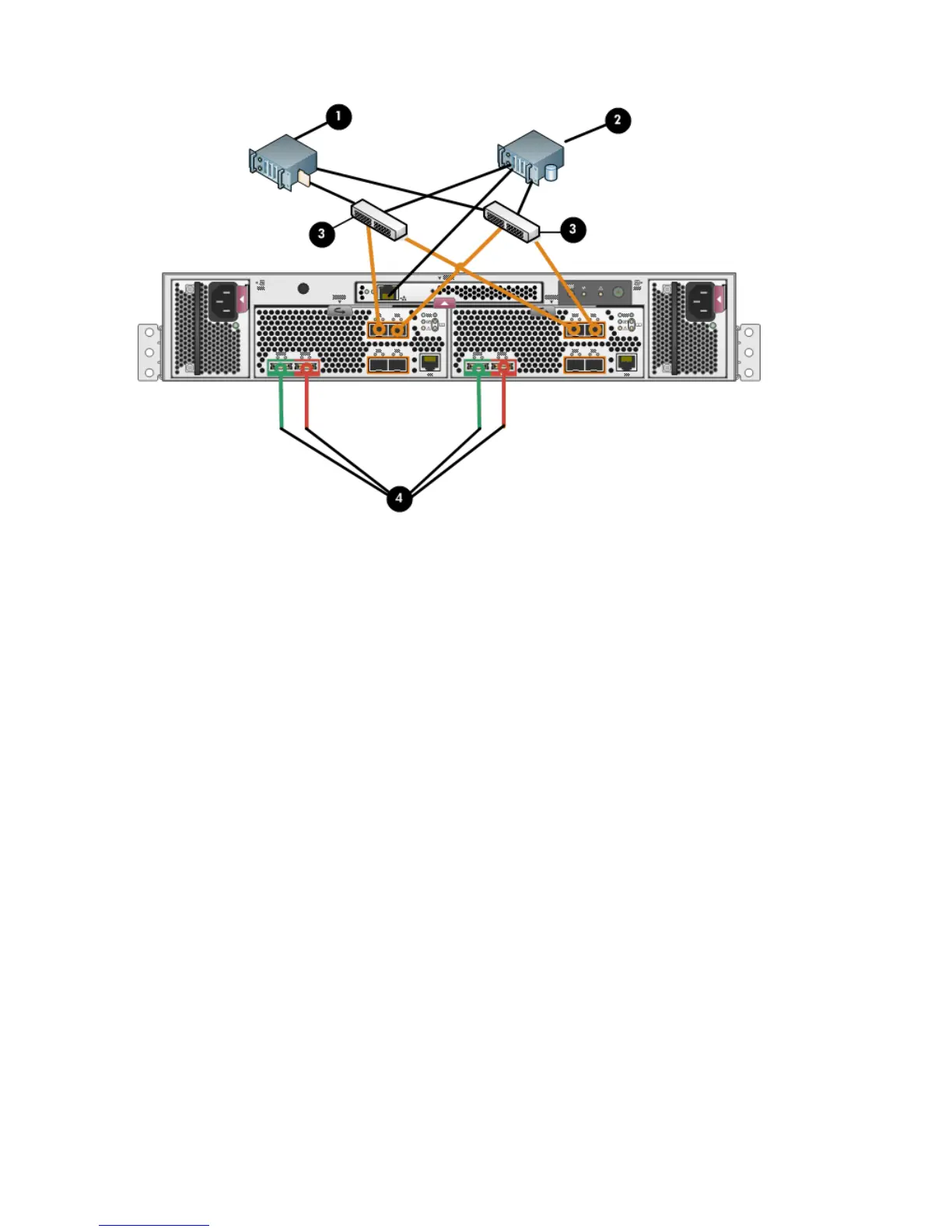

Figure 57 Cabling the controller to front end components—Fibre Channel to switch detail view with
array-based management
1. File server
2. Database server
3. Fiber channel switch
4. LED status indicators for cabling connections to disk enclosures. See Figure 51 (page 62) and Figure 55 (page 66)
for cabling connections.
68 Cabling the P6300/P6500 EVA
