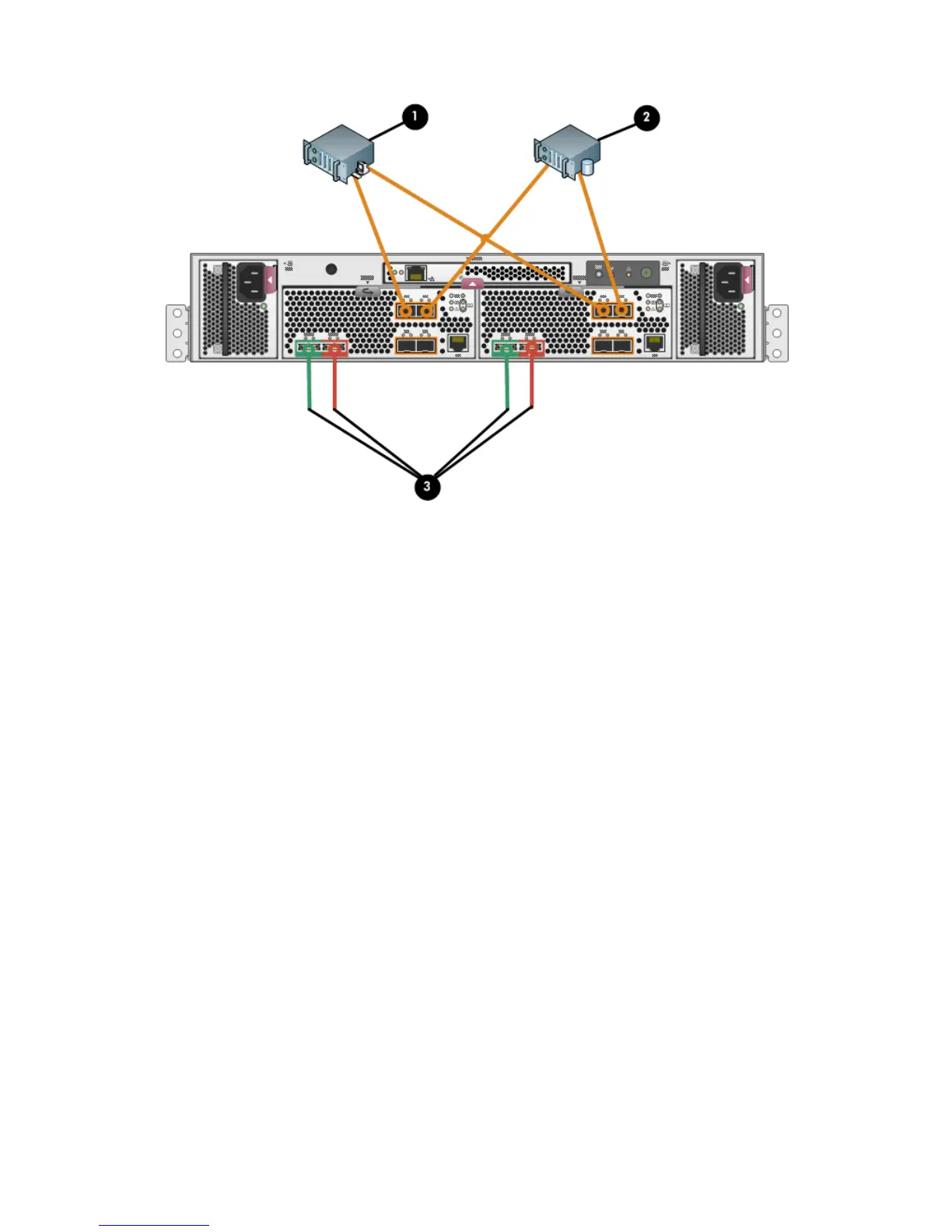

Figure 58 Cabling the controller to front end components—Direct Fibre Channel to servers with
server-based management
1. Management server
2. Database server
3. LED status indicators for cabling connections to disk enclosures. See Figure 51 (page 62) and Figure 55 (page 66)
for cabling connections.
Connecting the P6300/P6500 EVA to servers and switches 69
