HP Pavilion 14 Notebook PC - Page 47

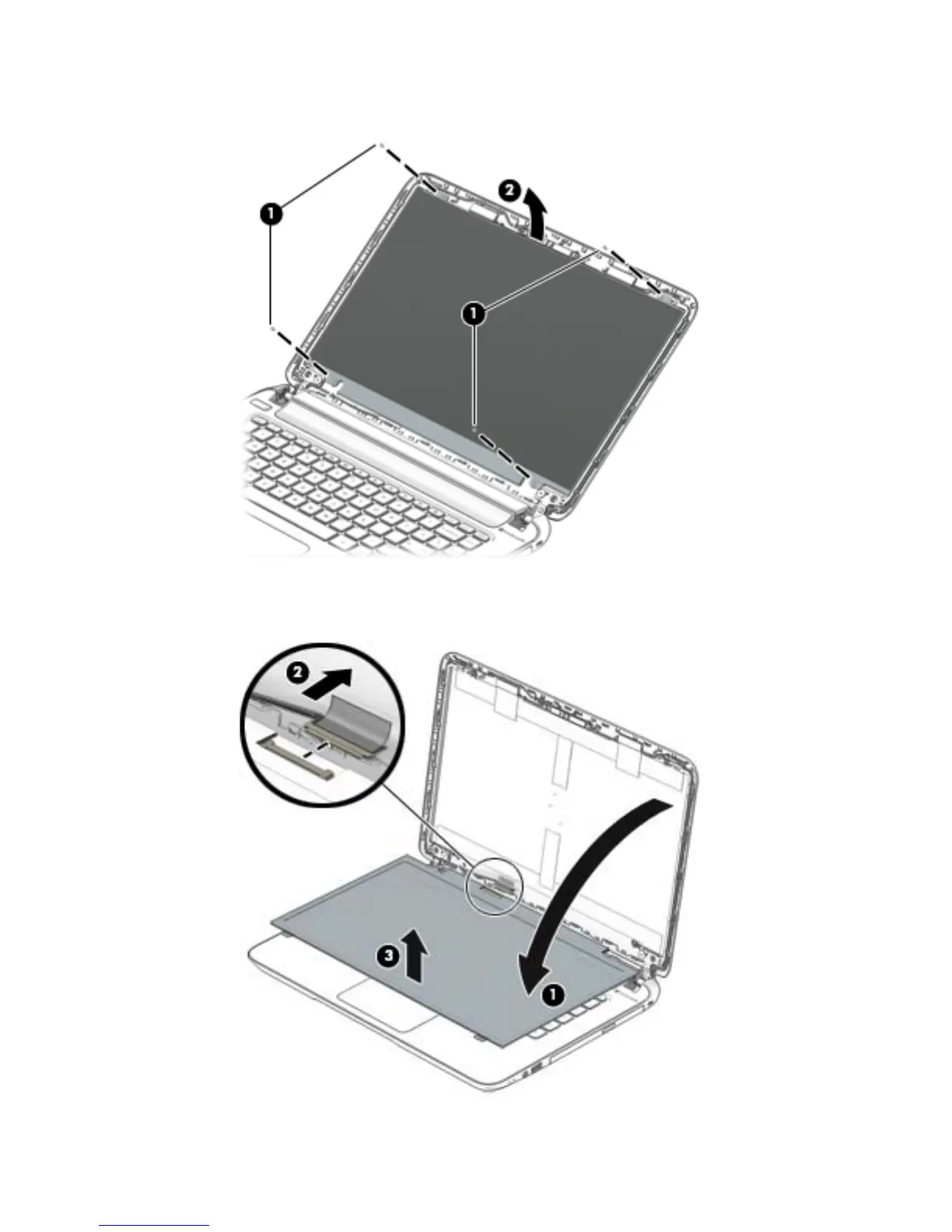

c. Remove the four Phillips M2.0×2.5 screws (1) and lift the top edge of the display panel (2).
Carefully move the display panel (1) to the keyboard.
Release the tab and disconnect the display panel cable connector (2). Lift the panel (3) to remove
it.
Component replacement procedures 37
