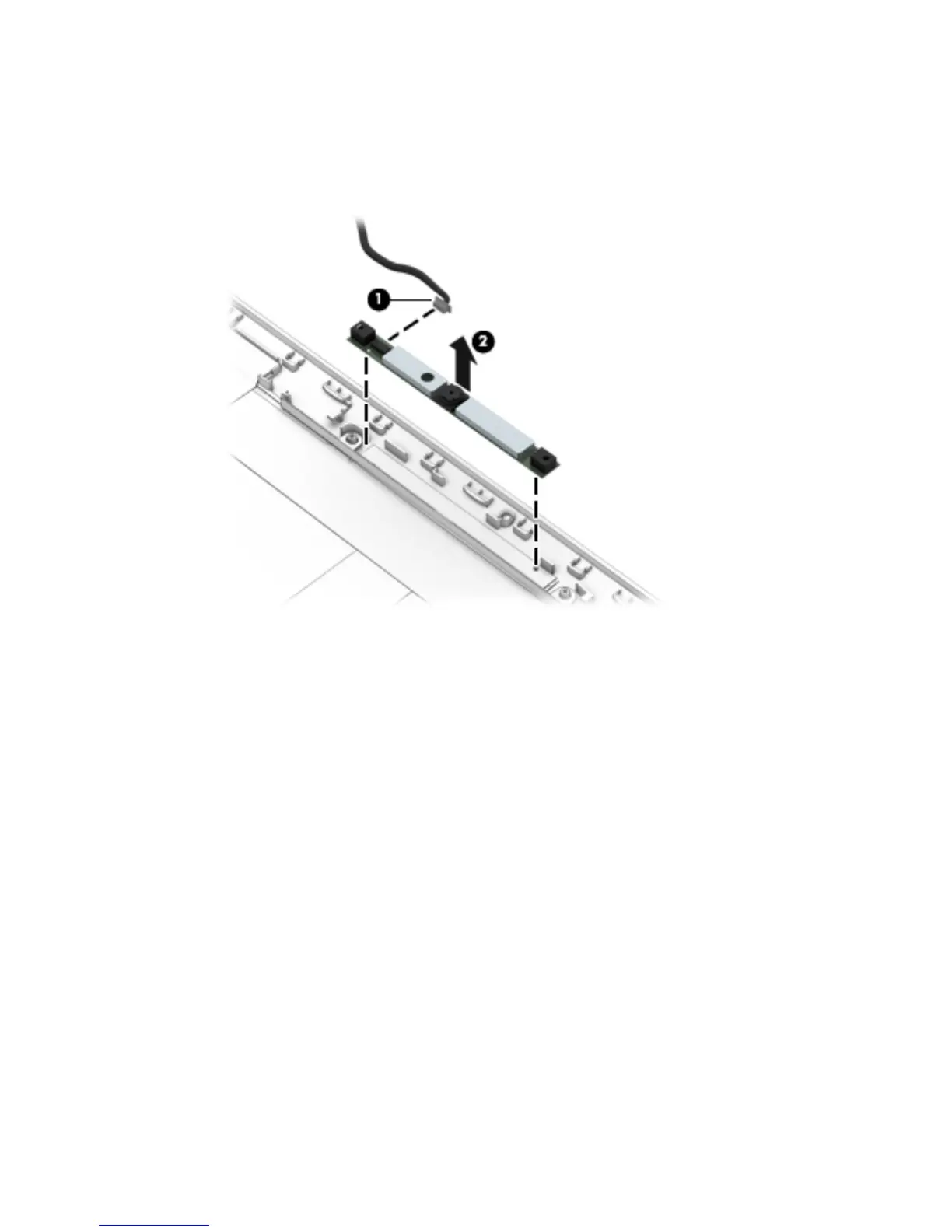

3. To remove the webcamera/microphone module:
a. Position the display assembly with the top edge toward you.
b. Disconnect the cable (1) from the module.
c. Lift to disengage the adhesive that secures the webcamera/microphone module to the display (2).
Reverse this procedure to replace the display assembly subcomponents.
38 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
