HP Pavilion 14 Notebook PC User Manual

a. Service door (see Service door on page 30)
b. Optical drive (see
Optical drive on page 32)
c. Top cover (see
Top cover on page 39)

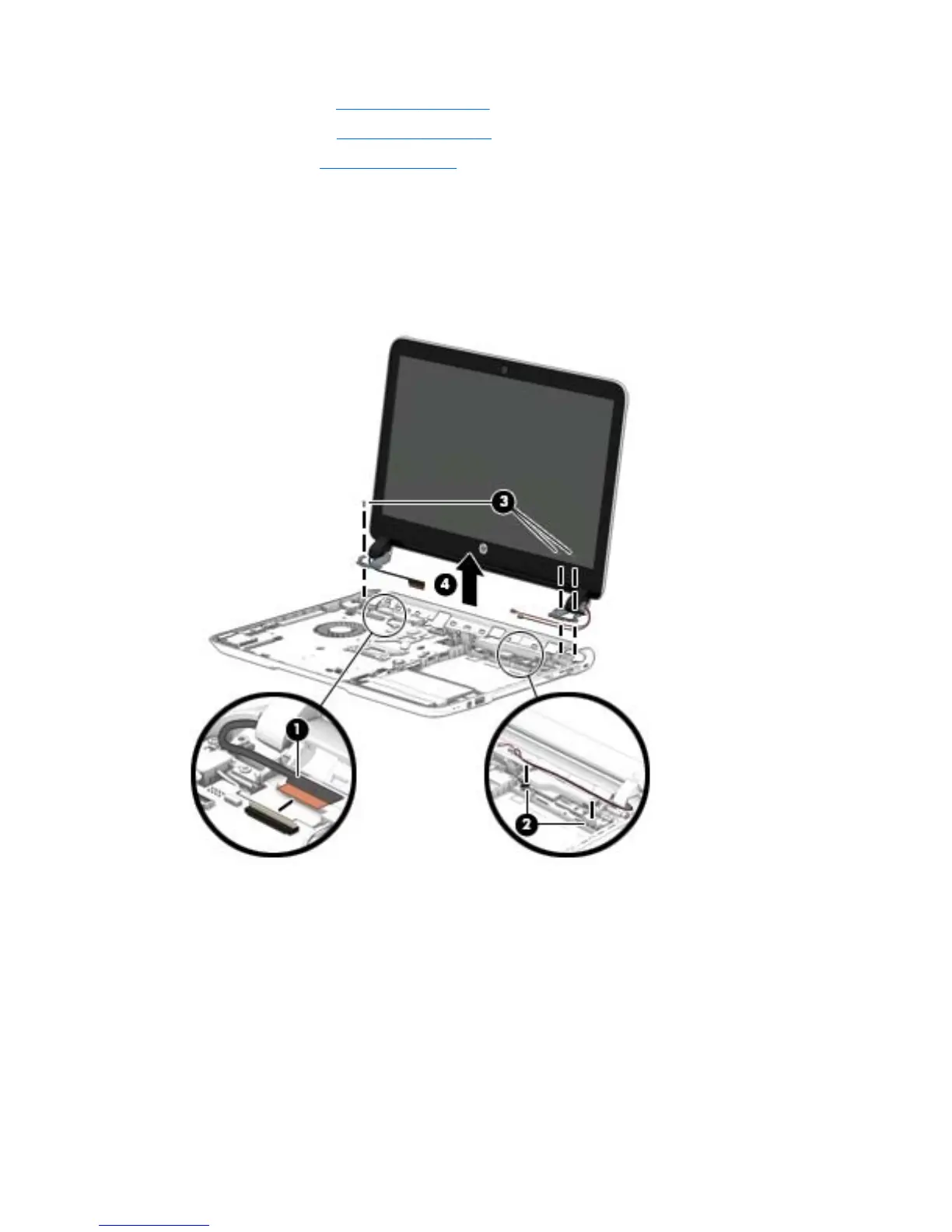

Remove the display assembly:
1. Disconnect the display cable (1) by flipping open the connector and lifting the cable.
2. Release the wireless antenna cables from the clips (2) built into the base enclosure.
3. Remove the three Phillips PM2.5×4.0 screws (3) that secure the display assembly to the base enclosure.
4. Remove the display assembly (4).
If it is necessary to replace any of the display assembly subcomponents:
1. If it is necessary to replace the webcamera/microphone module:
a. Disconnect the webcamera/microphone module cable (1) from the webcamera/microphone
module. (The webcamera/microphone module cable is part of the display panel cable.)
60 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

HP Pavilion 14 Notebook PC Specifications

General

Processor	Intel Core i3, i5, or i7
Display	14-inch diagonal HD or FHD (1366 x 768 or 1920 x 1080)
RAM	4GB, 8GB, or 16GB
Storage	128GB/256GB/512GB SSD
Graphics	NVIDIA GeForce
Operating System	Windows 10 or Windows 11
Ports	HDMI, Headphone/Microphone combo jack, SD card reader
Wireless	Bluetooth
