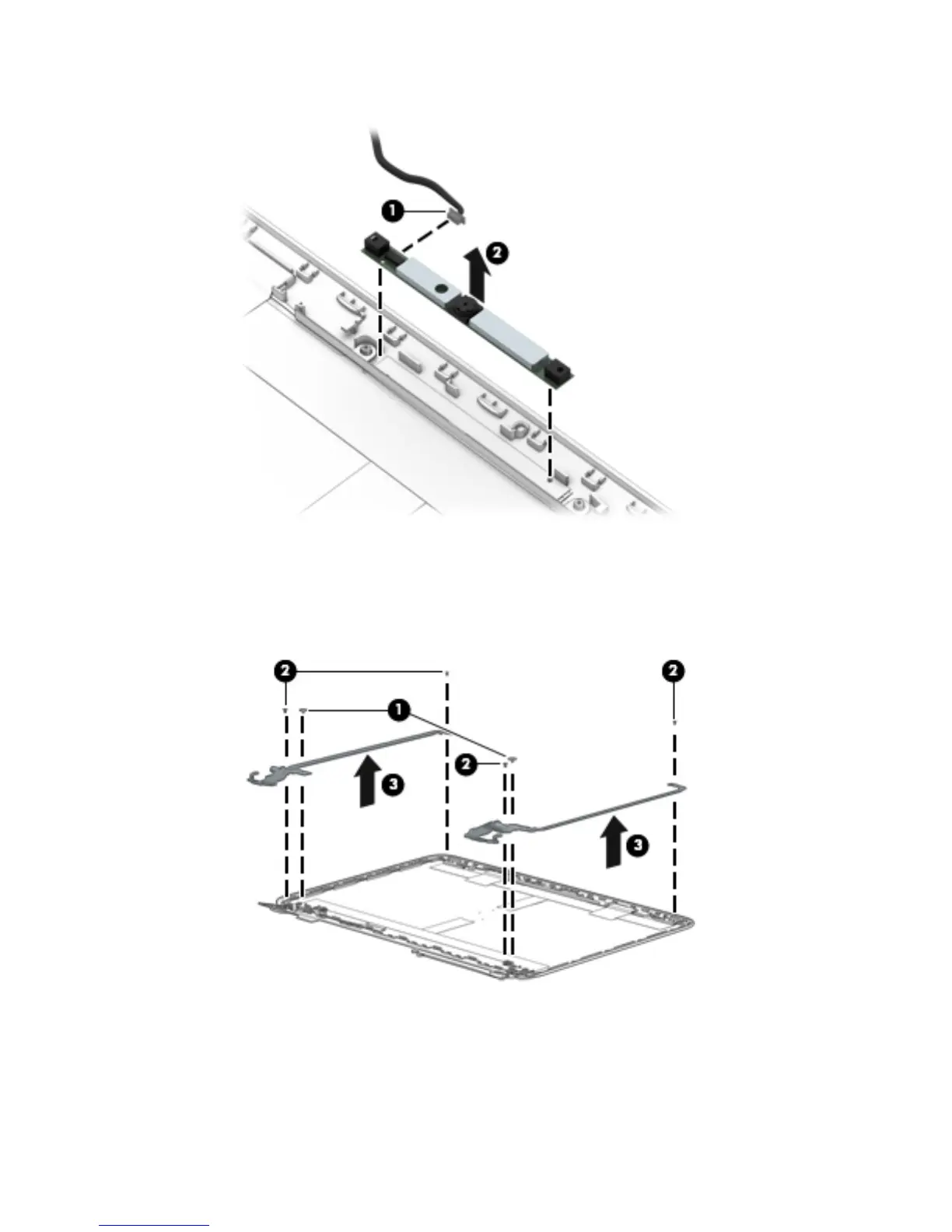

b. Detach the webcamera/microphone module (2) from the display back cover.
2. If it is necessary to replace the hinges:
a. Remove the two top screws (1) from the display hinges.
b. Remove the four bottom screws (2) from the display hinges.
c. Remove the hinges (3) from the display enclosure.
3. If it is necessary to replace the hinges on a touch panel:
a. Remove the four top screws (1) from the display hinges.
b. Remove the four bottom screws (2) from the display hinges.
Component replacement procedures 61
