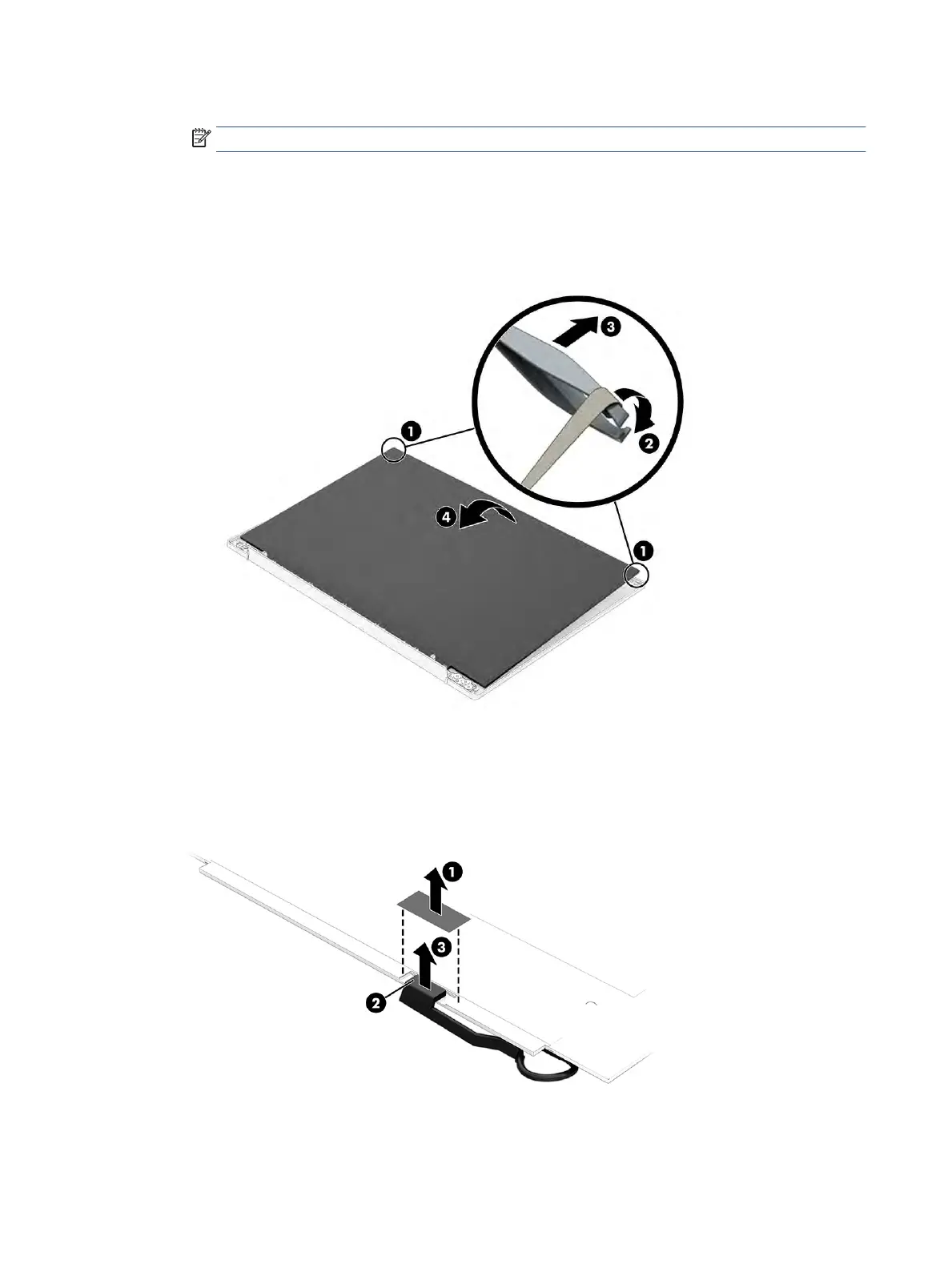

b. Rotate the display panel over and place it next to the display enclosure (4).
NOTE: Pull the tape out slowly and evenly to prevent it from breaking prematurely.
Display adhesive is available in the Adhesive Kit as spare part number M52817-001.
Display panels are available as the following spare part numbers:
M52803-001: WQXGA
M52804-001: WUXGA
c. Lift the large, square piece of tape from the display panel connector (1).
d. Release the adhesive support strip (2) that secures the display panel cable connector to the display
panel.
e. Disconnect the display panel cable (3) from the display panel.
9. If you need to remove the hinges from the display rear cover:
48 Chapter 5 Removal and replacement procedures for authorized service provider parts
To Next Page
