Removal and Replacement Procedures
Maintenance and Service Guide 5–9

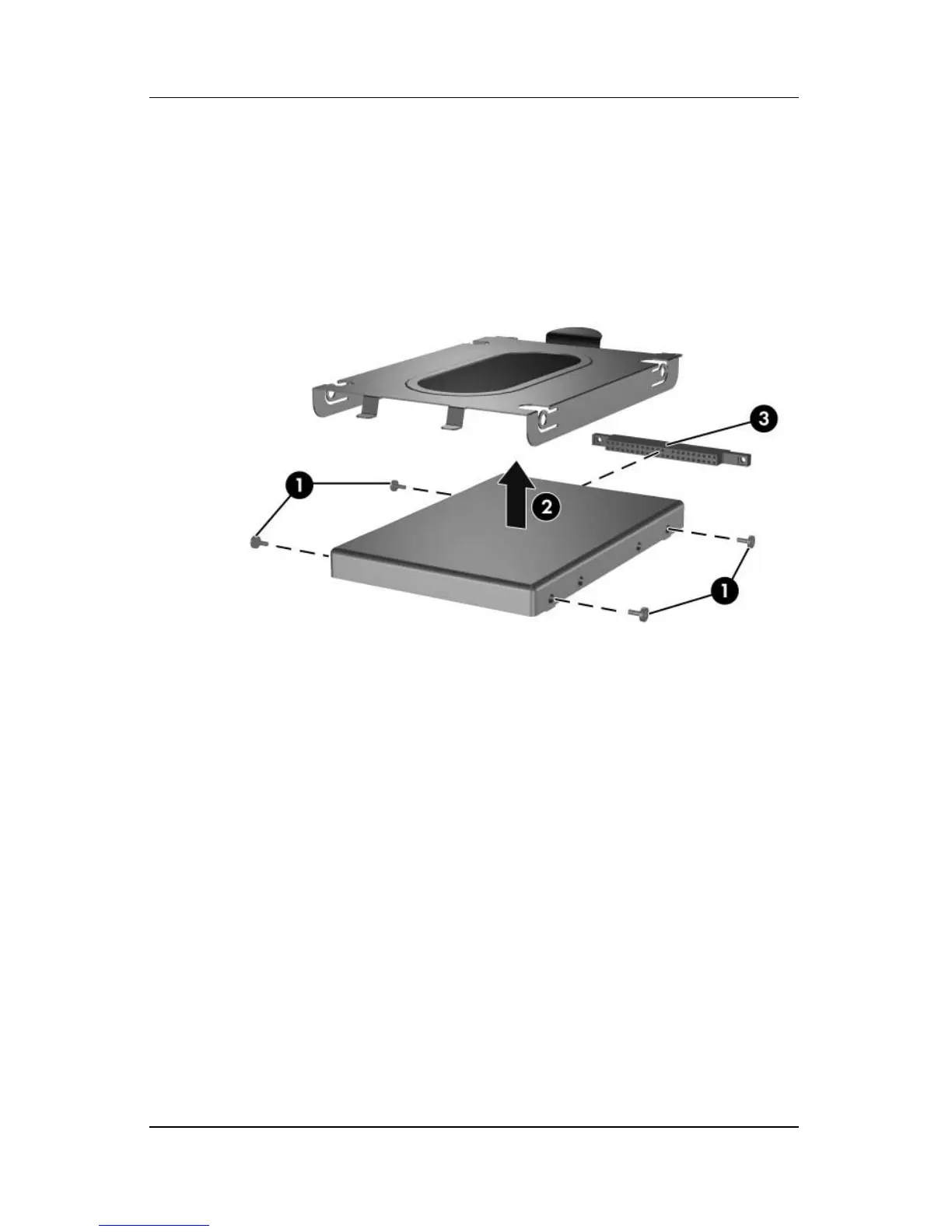

6. Remove the four PM2.5×4.0 screws 1 that secure the
hard drive frame to the hard drive.
7. Lift the frame 2 to remove if from the hard drive.
8. Slide the hard drive connector 3 off the hard drive.
Removing the Hard Drive Frame and Connector
Reverse the above procedure to install and reassemble the
hard drive.
