Removal and Replacement Procedures
Maintenance and Service Guide 5–49
3. Disconnect the fan cable from the system board 1.
4. Remove the three PM2.0×4.0 screws 2 that secure the heat
sink to the top cover.
5. Remove the heat sink 3.

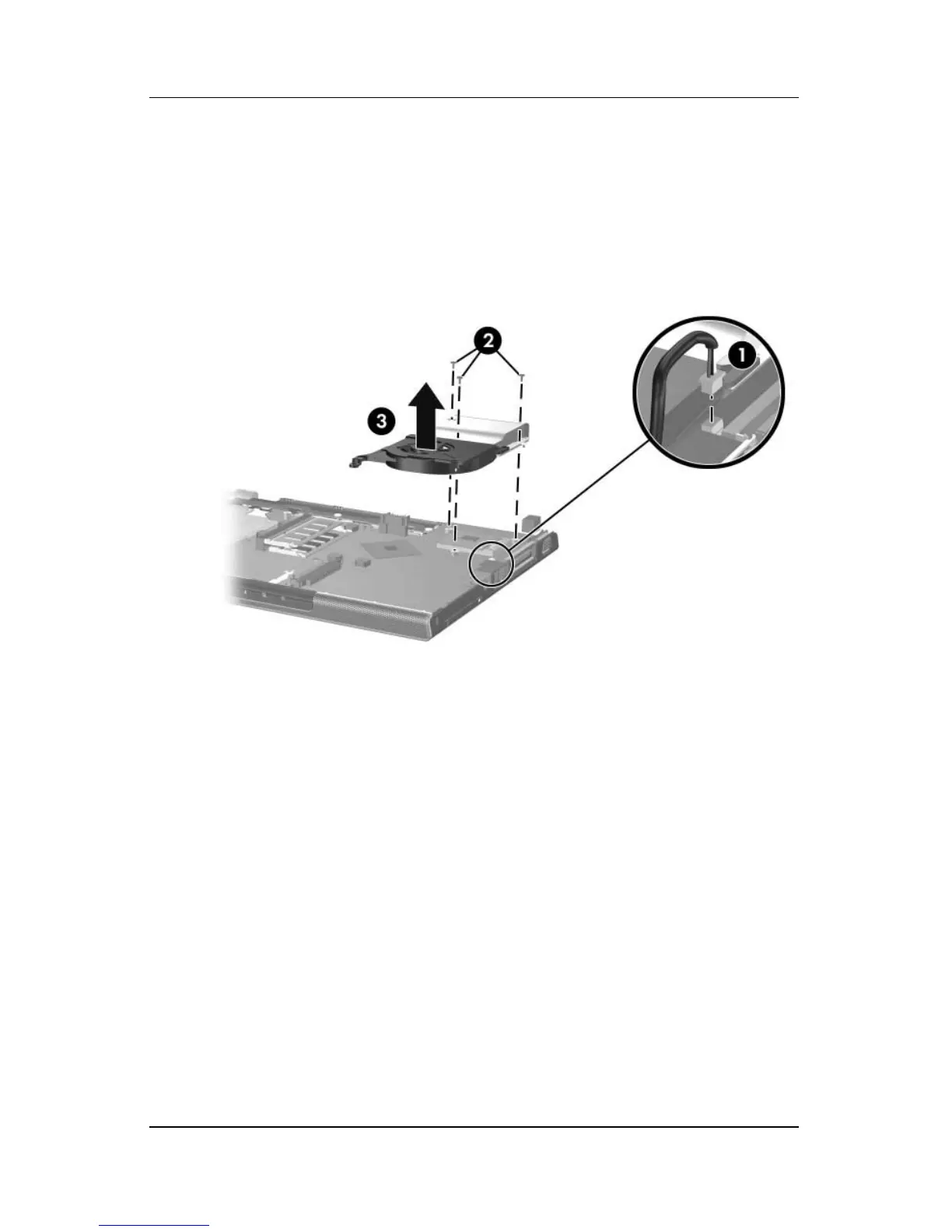

Removing the Heat Sink
Reverse the above procedure to install the heat sink.
