5–44 Maintenance and Service Guide
Removal and Replacement Procedures
5.15 RTC Battery
✎
The RTC battery is included with the system board. Refer
to Section 5.20, “System Board,” for more information.
1. Prepare the computer for disassembly (Section 5.3)
and remove the following components:
❏ Hard drive (Section 5.4)
❏ Optical drive (Section 5.8)
❏ Switch cover (Section 5.9)
❏ Keyboard (Section 5.10)
❏ Display assembly (Section 5.11)
❏ Base enclosure (Section 5.12)
2. Remove the RTC battery from the socket on the system
board.

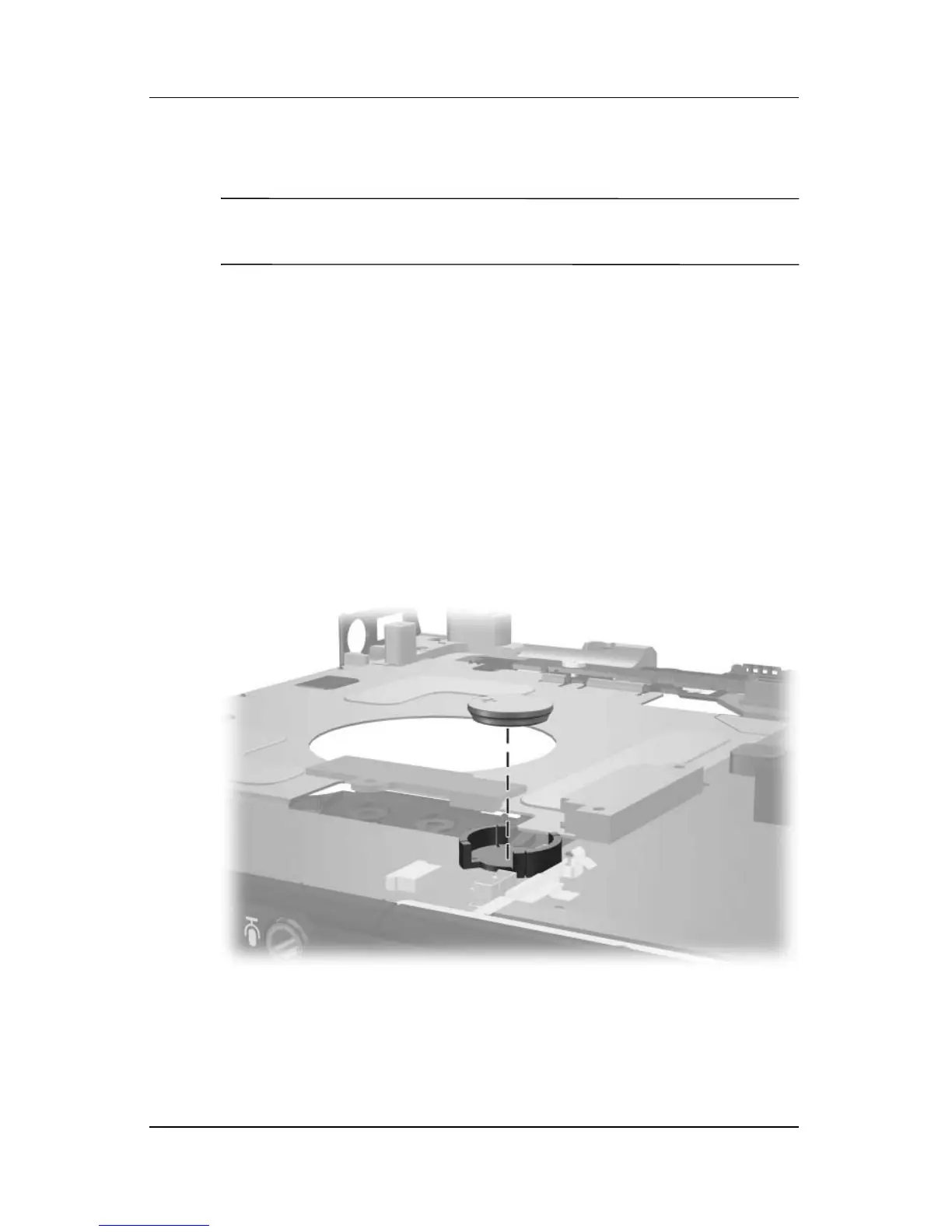

Removing the RTC Battery
Reverse the above procedure to install the RTC battery.
