Removal and Replacement Procedures
Maintenance and Service Guide 5–41

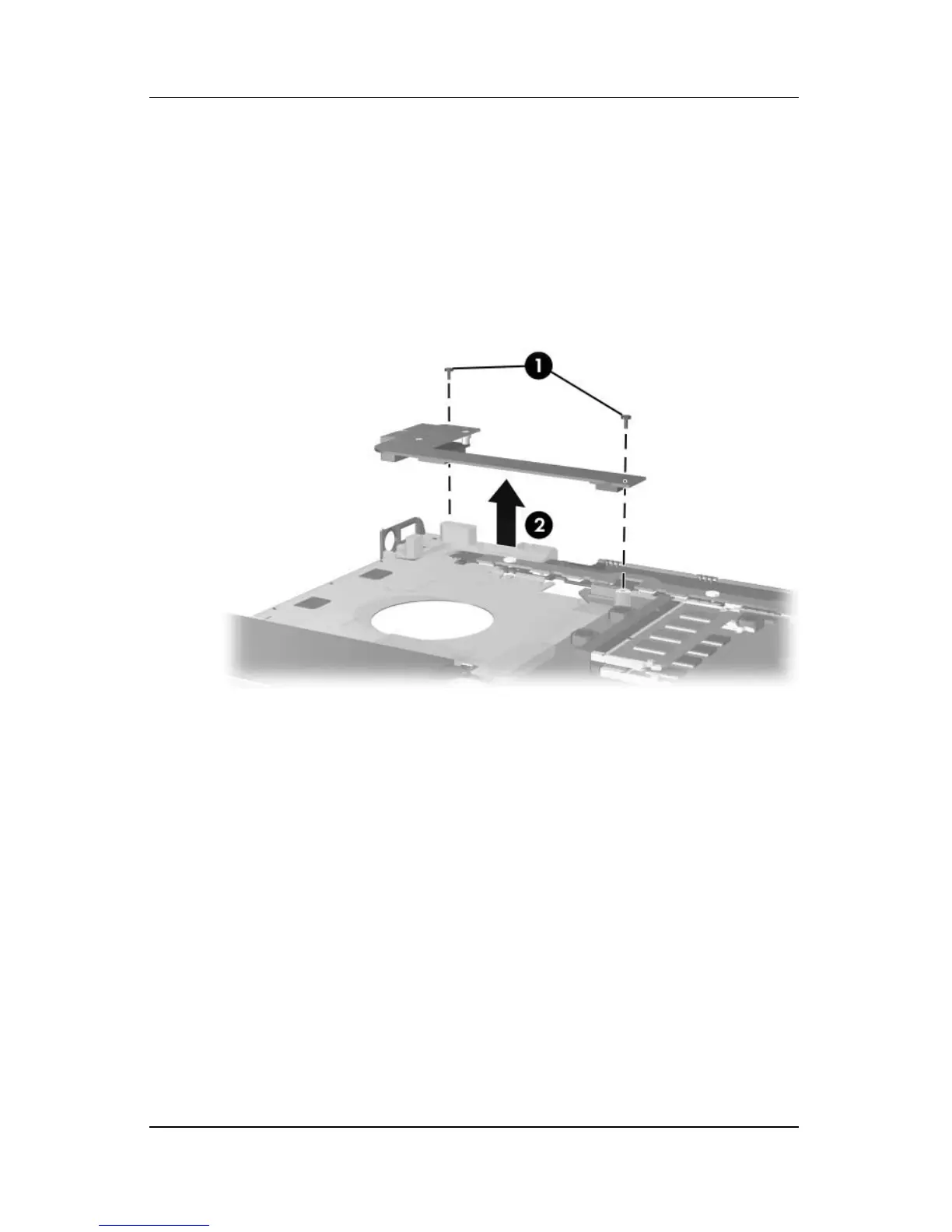

2. Remove the two PM2.0×4.0 screws 1 that secure the
USB/S-Video controller board to the top cover.
3. Lift the right side of the board 2 to disconnect it from the
system board.
4. Remove the USB/S-Video controller board.
Removing the USB/S-Video Controller Board
Reverse the above procedure to install the USB/S-Video
controller board.

HP Pavilion dv1000 Specifications

General

Processor	Intel Pentium M or Intel Celeron M
Operating System	Windows XP Home or Professional
RAM	256 MB - 2 GB DDR
Graphics	Intel GMA 900
Weight	2.4 kg
Battery Life	Up to 3.5 hours
Optical Drive	DVD-ROM
Wireless	802.11b/g
Chipset	Intel 915GM
Ports	3 USB 2.0, VGA, S-Video, Ethernet, Modem, Headphone, Microphone
Display	14.1-inch WXGA
