Removal and Replacement Procedures
Maintenance and Service Guide 5–17

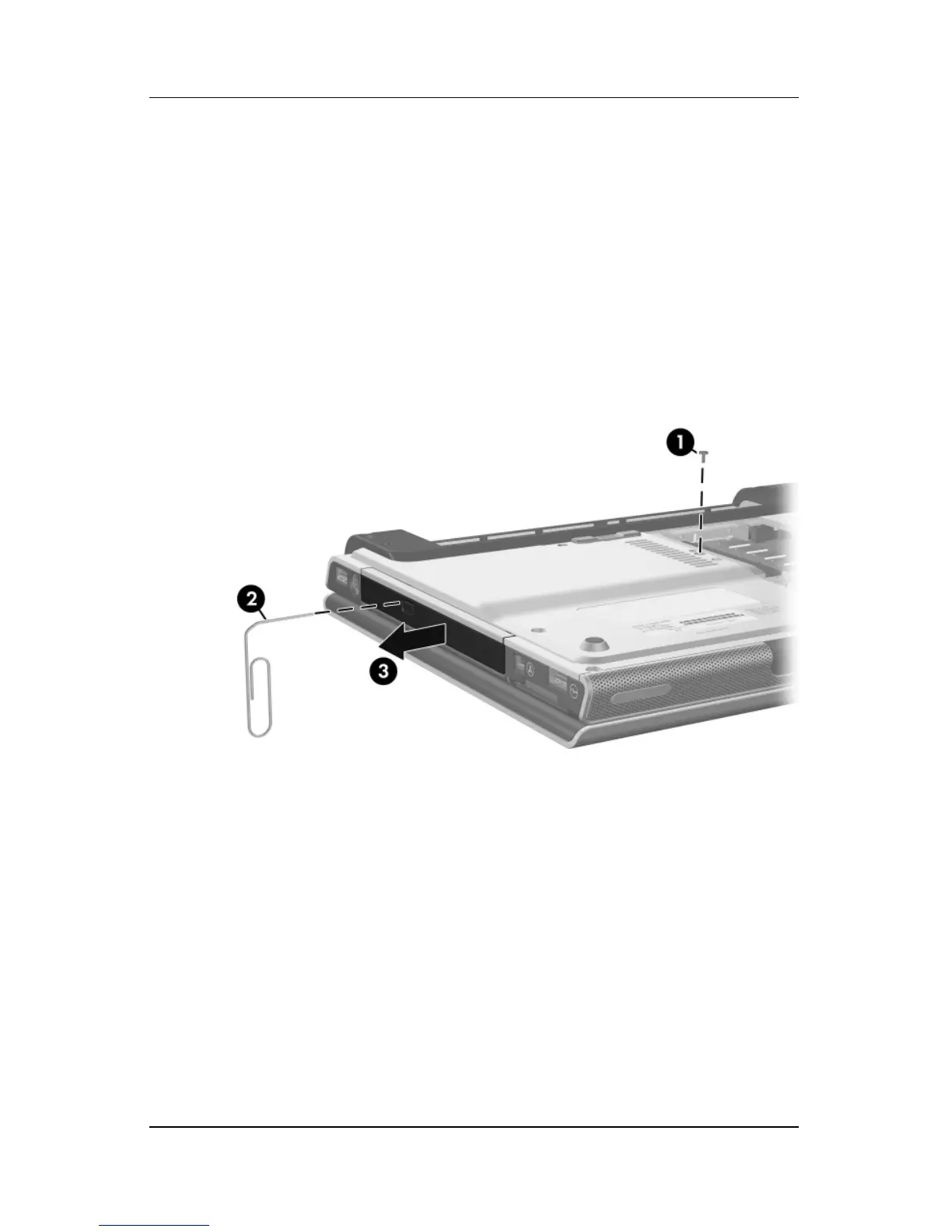

2. Remove the PM2.0×7.0 screw 1 that secures the optical
drive to the computer.
3. Insert a thin tool, such as a paper clip, into the media tray
release hole 2. (The optical drive media tray releases from
the optical drive.)
4. Use the media tray frame to slide the optical drive 3 out of
the computer.
5. Remove the optical drive.
Removing the Optical Drive
Reverse the above procedure to install an optical drive.
