Removal and Replacement Procedures
Maintenance and Service Guide 5–23
11. Turn the computer display-side up with the front panel
toward you.
12. Open the computer as far as possible.

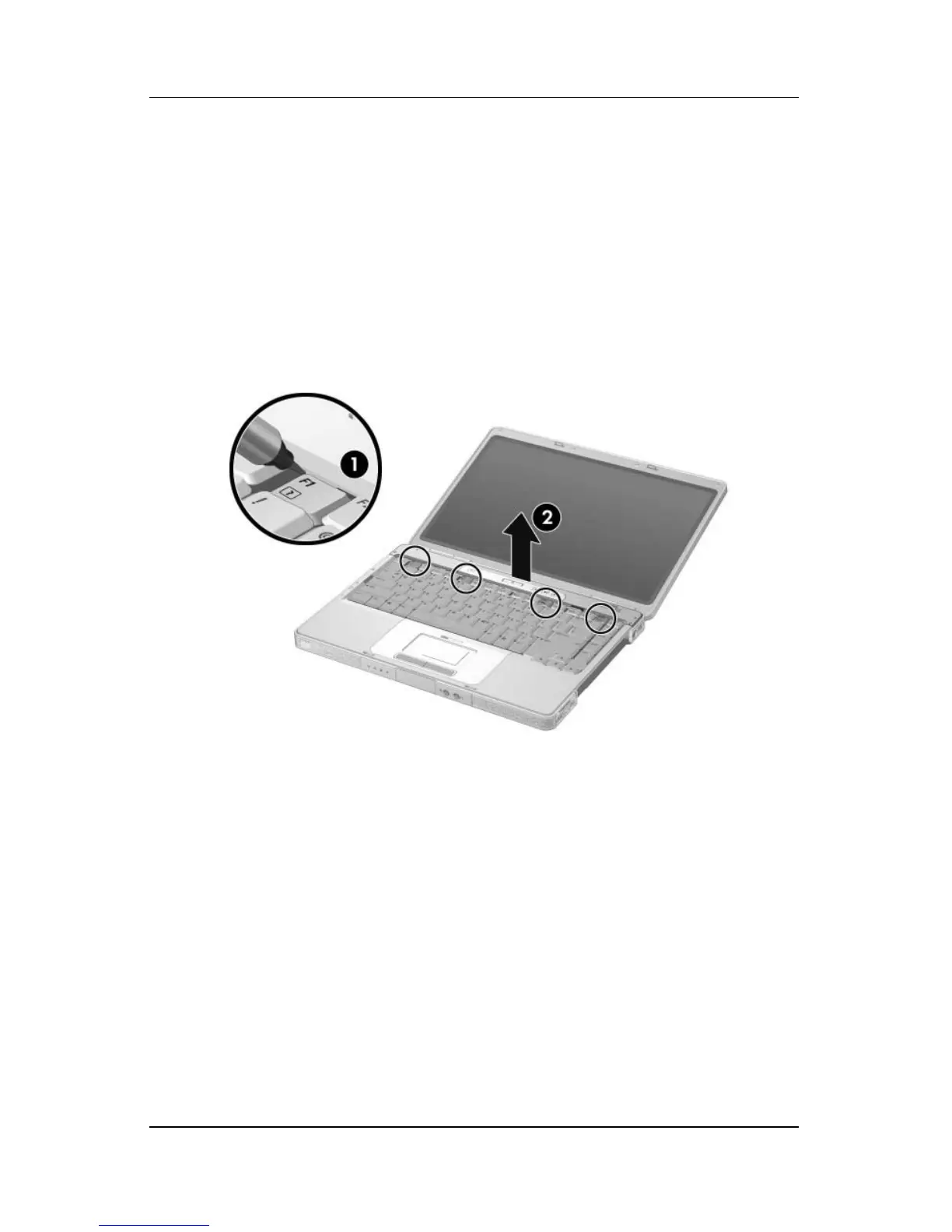

13. Insert a flat-blade screwdriver into the slots located behind
the
F1, F5, F11, and insert keys 1 and lift the front edge of the
switch cover 2 until it disengages from the computer.
14. Remove the switch cover.
Removing the Switch Cover, HP Compaq nx4800 and
Compaq Presario V2000 models Only
Reverse the above procedure to install the switch cover.
