5–32 Maintenance and Service Guide
Removal and Replacement Procedures

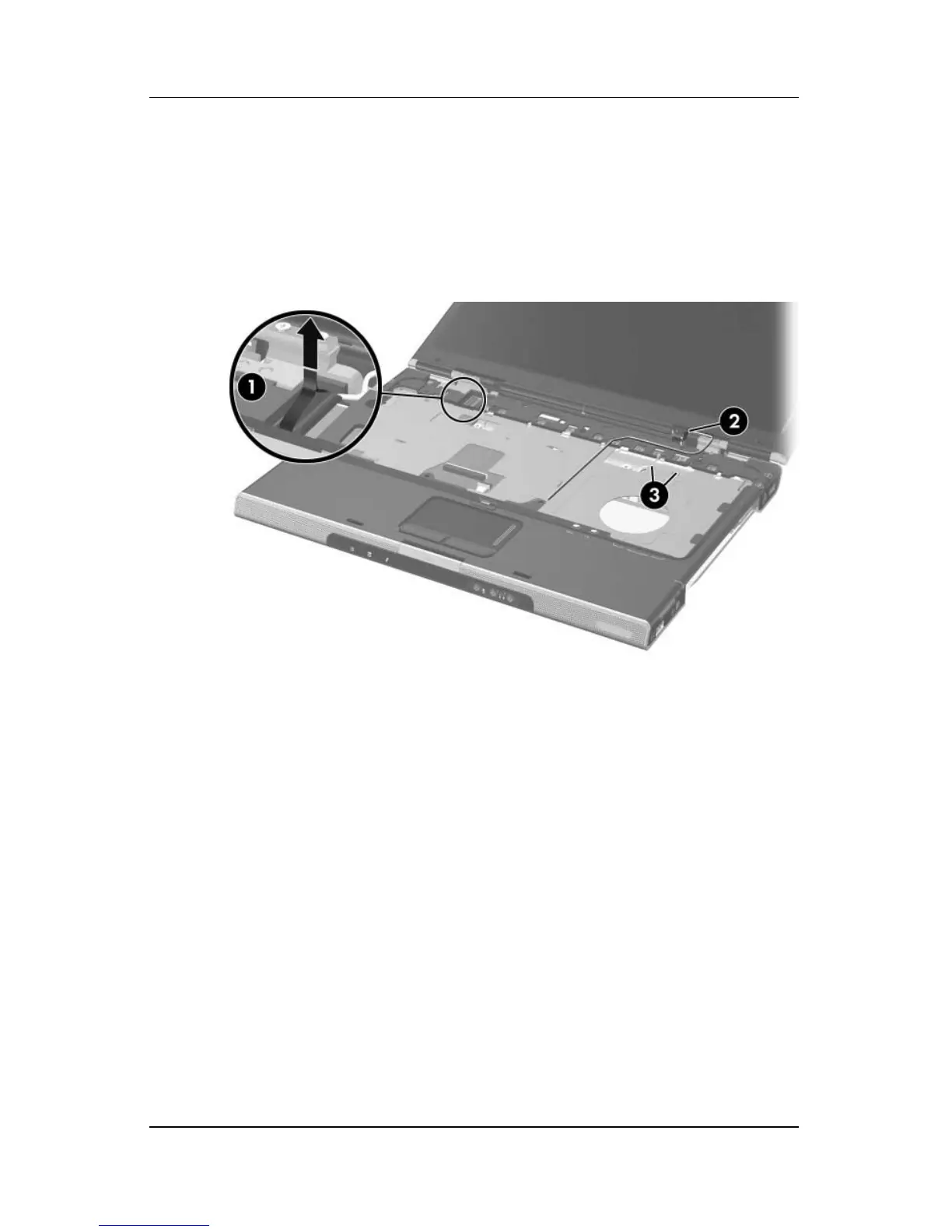

9. Disconnect the display cable 1 from the system board.
10. Remove the tape 2 that secures the wireless antenna cables
to the top cover.
11. Remove the cables from the clips 3 in the top cover.
Disconnecting the Display Cable and Removing the Wireless
Antenna Cables
To Next Page
