Removal and Replacement Procedures
Maintenance and Service Guide 5–37
3. Turn the computer upside down with the front panel
toward you.
4. Remove the following:
1 Fourteen PM2.0×7.0 screws
2 One PM2.0×5.0 screw
3 Two PM2.0×4.0 screws

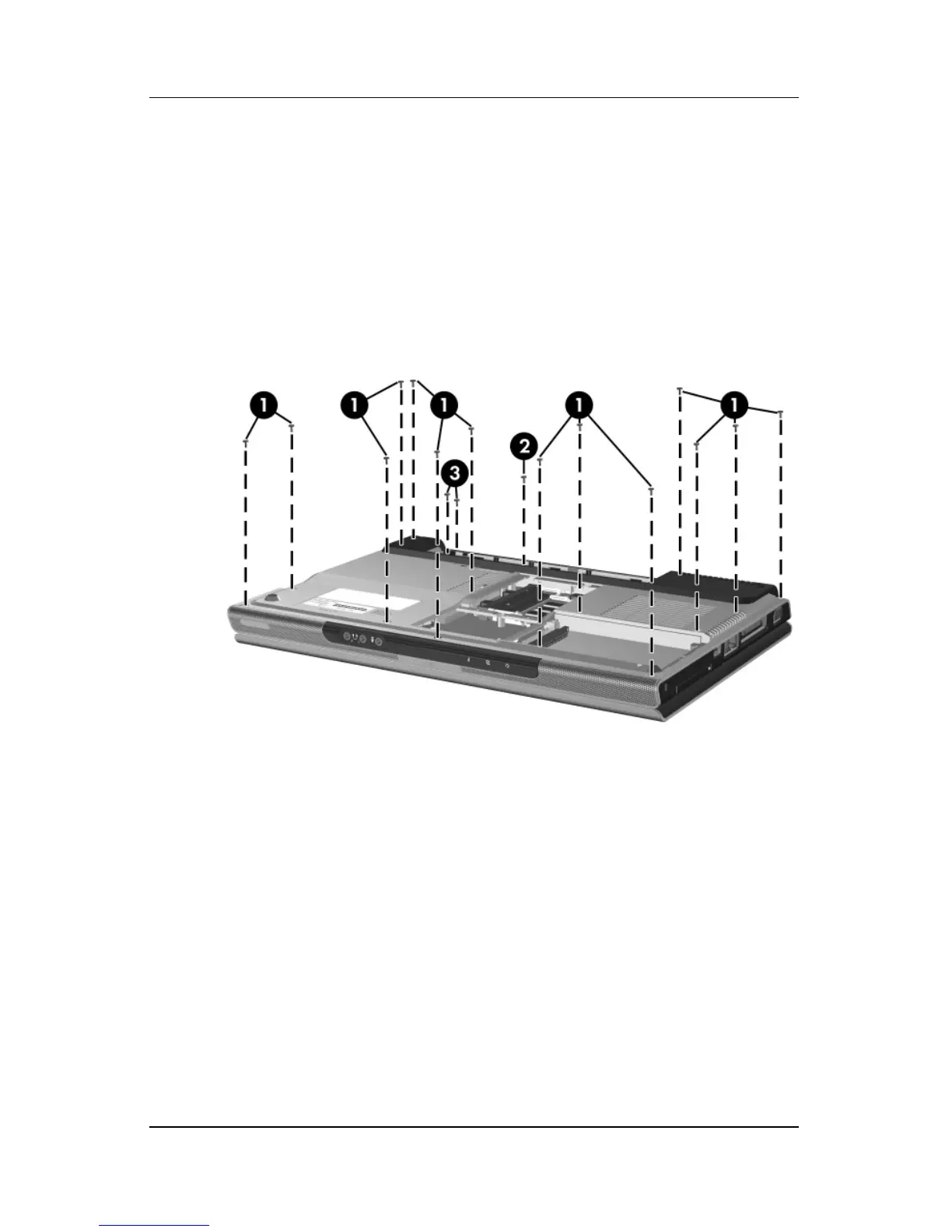

Removing the Base Enclosure Screws, Part 2, HP Pavilion dv1000
models Only
To Next Page
