5–58 Maintenance and Service Guide
Removal and Replacement Procedures
✎
Steps 7 and 8 apply only to HP Compaq nx4800 and
Compaq Presario V2000 models.
7. Release the ZIF connector 1 to which the LED board cable is
connected and disconnect the cable 2 from the system board.
8. Remove the four PM2.0×4.0 screws 3 that secure the system
board to the top cover.

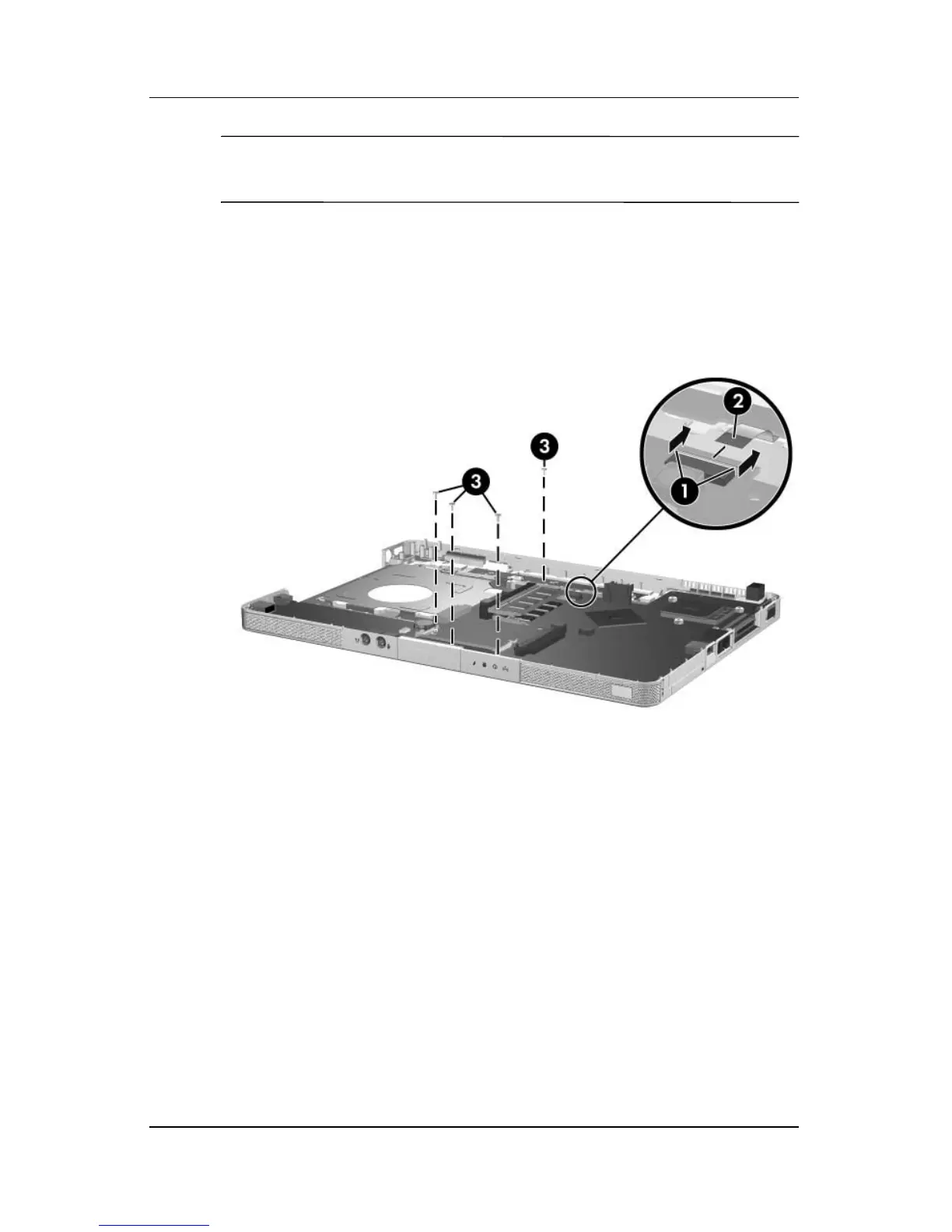

Disconnecting the LED Board Cable and Removing the System
Board Screws, HP Compaq nx4800 and Compaq Presario V2000
models Only
