Removal and Replacement Procedures
Maintenance and Service Guide 5–9
7. Remove the 4 Phillips PM2.5×4.0 screws 1 that secure the
hard drive frame to the hard drive.
8. Slide the frame forward 2 to remove if from the hard drive.

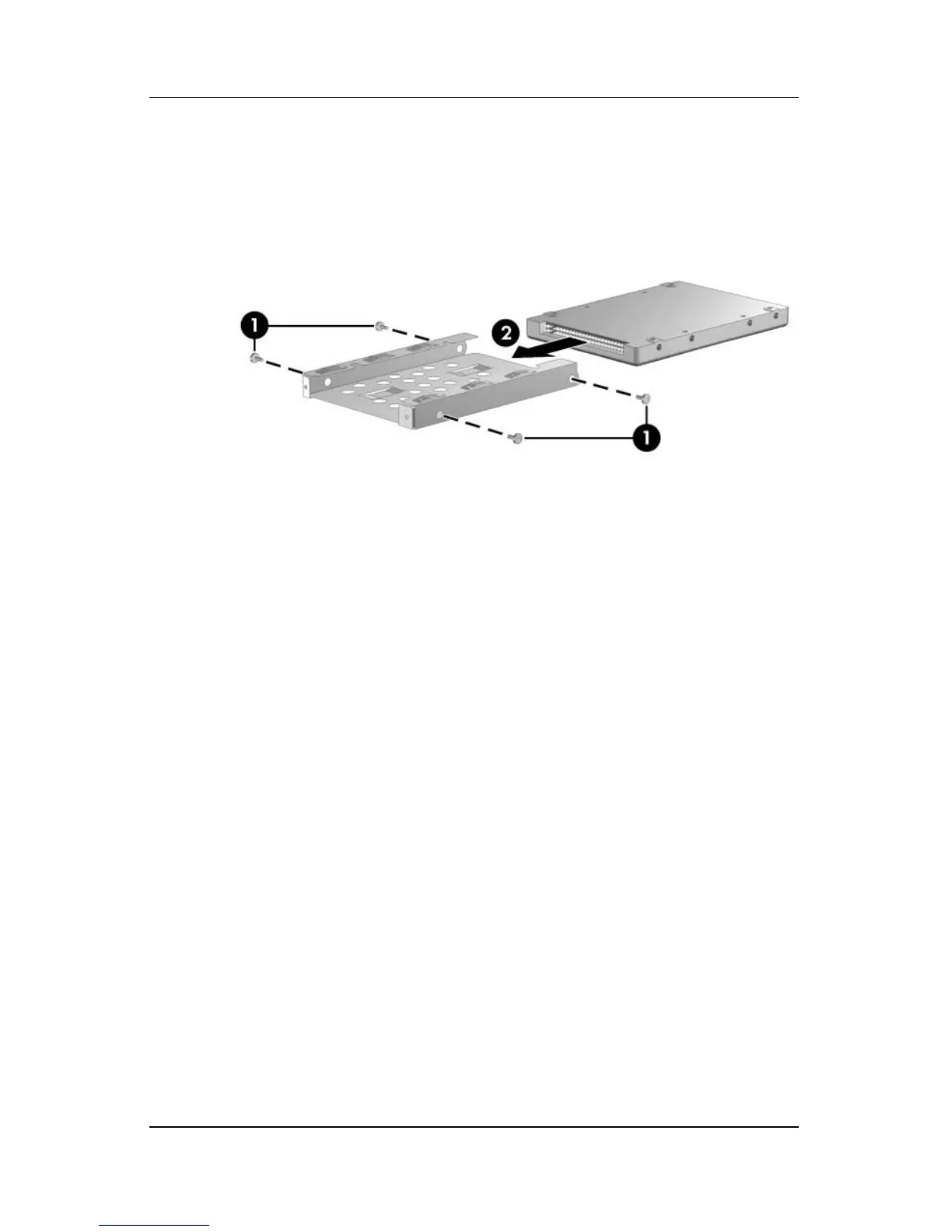

Removing the Hard Drive Frame
Reverse the above procedure to reassemble and install the
hard drive.
