1–22 Maintenance and Service Guide
Product Description

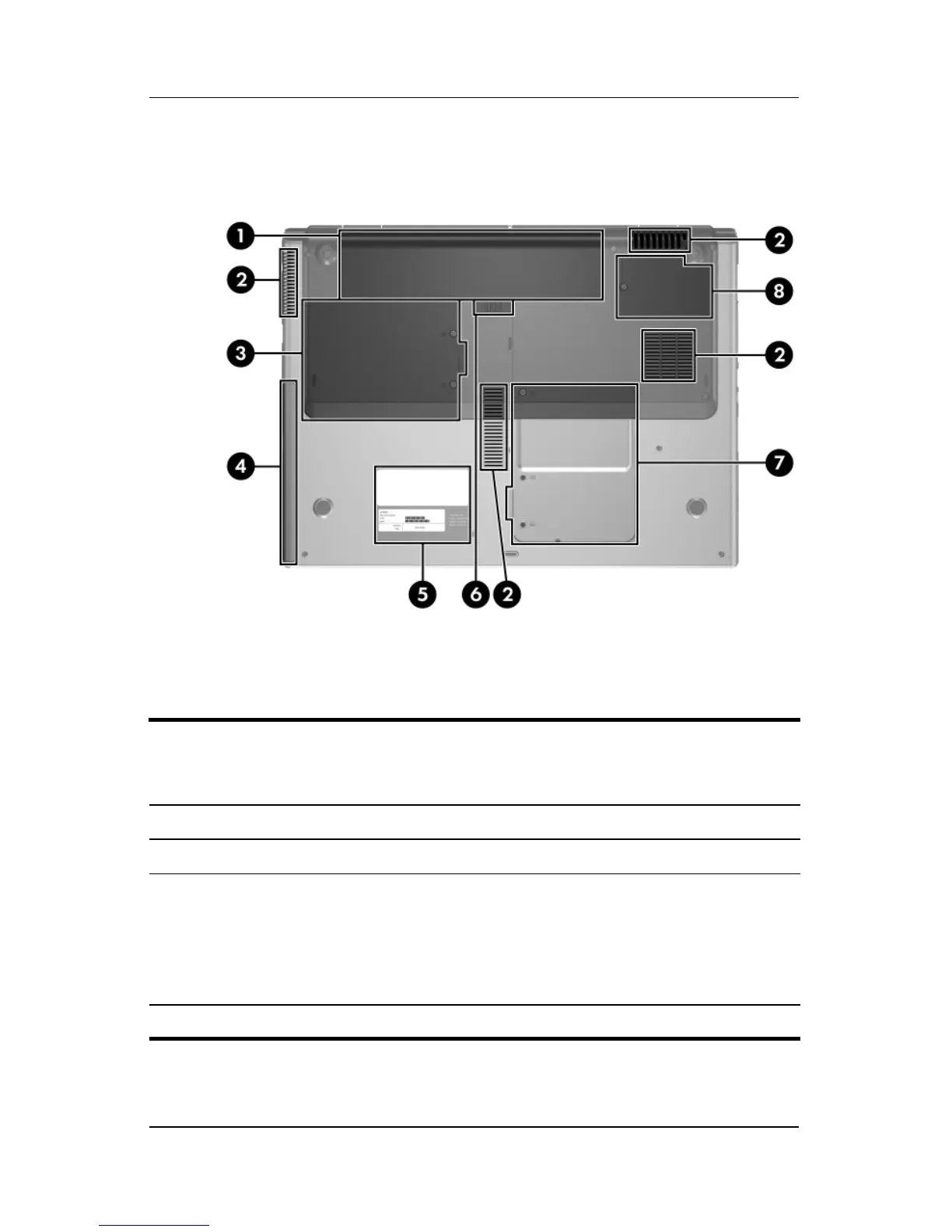

The external components on the bottom of the notebook are
shown below and described in Table 1-11.
Bottom Components
Table 1-11
Bottom Components
Item Component Function
1 Battery bay Holds a battery pack.
2 Vents (4) Provide airflow to cool internal
components.
Ä
To prevent overheating, do not obstruct vents. Do not allow a
hard surface, such as a printer, or a soft surface, such as
pillows or thick rugs or clothing, to block airflow.
3 Hard drive bay Holds the internal hard drive.
