Product Description
Maintenance and Service Guide 1–5
1.4 External Components

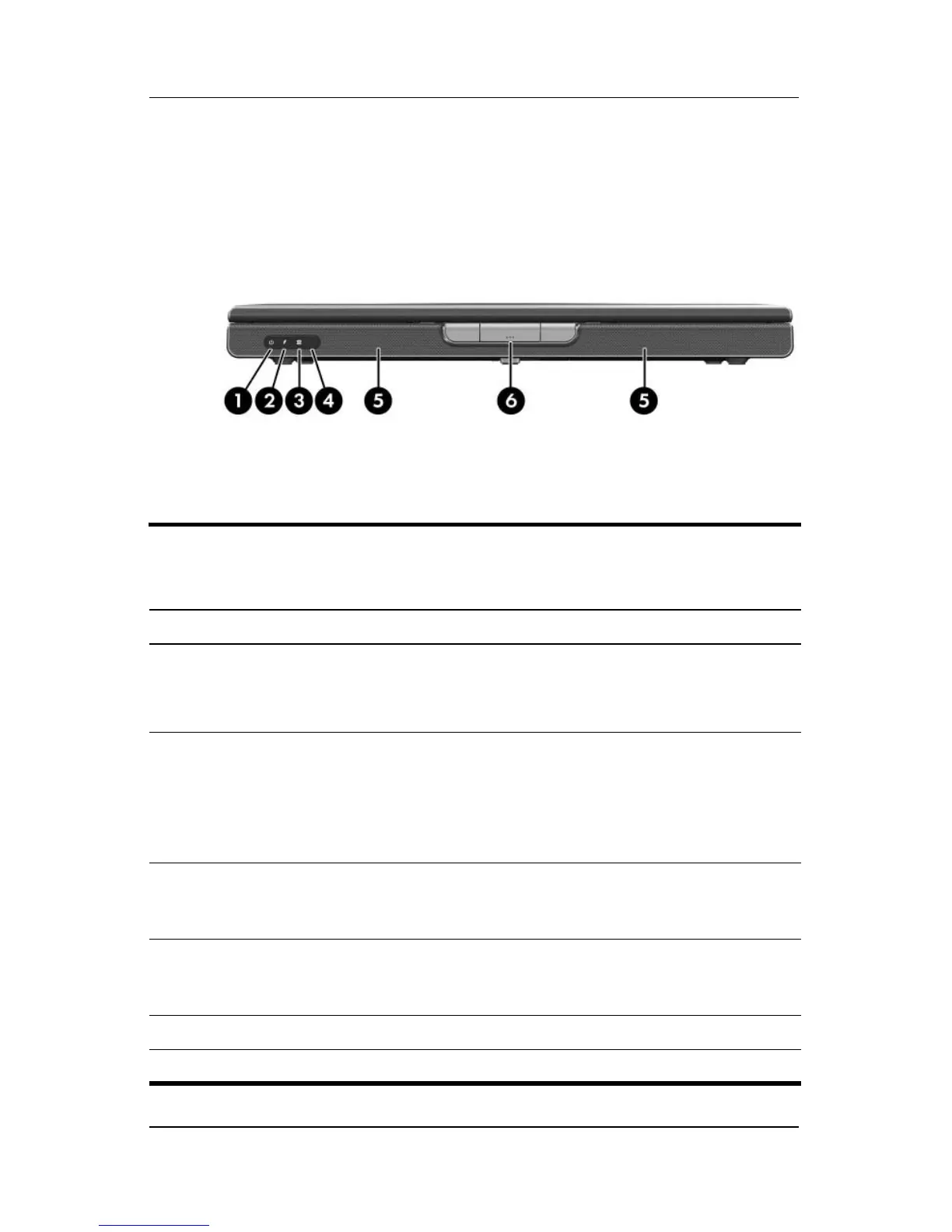

The external components on the front of the notebook are shown
below and described in Table 1-1. Depending on your notebook
model, component locations may vary.
Front Components
Table 1-1
Front Components
Item Component Function
1 Power/standby light ■ On: Notebook is turned on.
■ Blinking: Notebook is in standby.
■ Off: Notebook is off or in hibernation.
2Battery light ■ On: The battery pack is charging.
■ Blinking: The battery pack has reached a
low-battery condition.
■ Off: The battery pack is fully charged or
not inserted.
3 Integrated Drive
Electronics (IDE) drive
light
On or blinking: The internal hard drive or an
optical drive is being accessed.
4 Consumer infrared
(IR) lens (select
models only)
Links the notebook to an optional remote
control.
5 Speakers Produce stereo sound.
6 Display release button Opens the notebook.
