Removal and Replacement Procedures
Maintenance and Service Guide 5–27
1. Prepare the notebook for disassembly (Section 5.3).
2. Release the switch cover (Section 5.12).

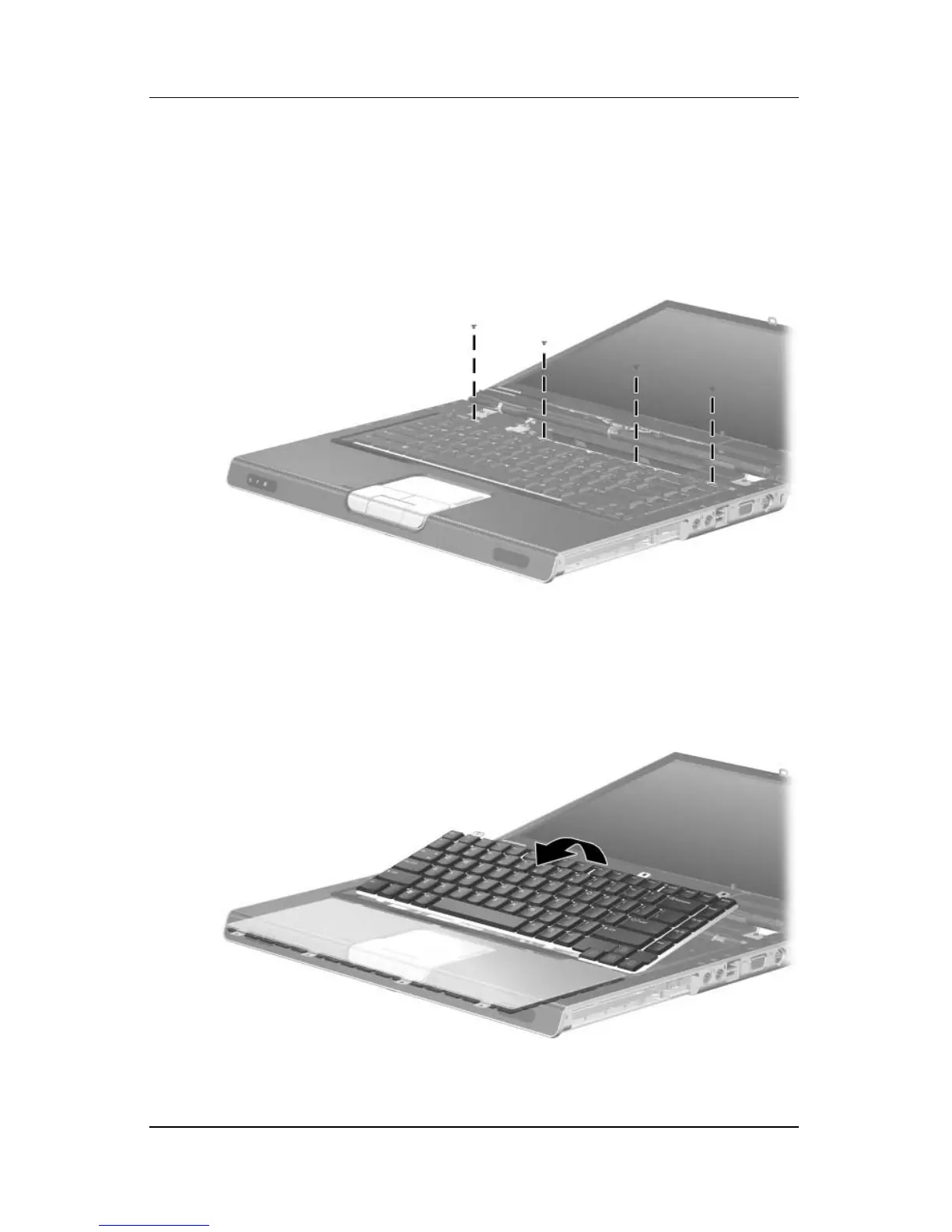

3. Remove the 4 Phillips PM2.0×2.0 screws that secure the
keyboard to the notebook.
Removing the Keyboard Screws
4. Lift the rear edge of the keyboard and swing it forward until it
rests on the palm rest.
Releasing the Keyboard
To Next Page
