Removal and Replacement Procedures
Maintenance and Service Guide 5–53

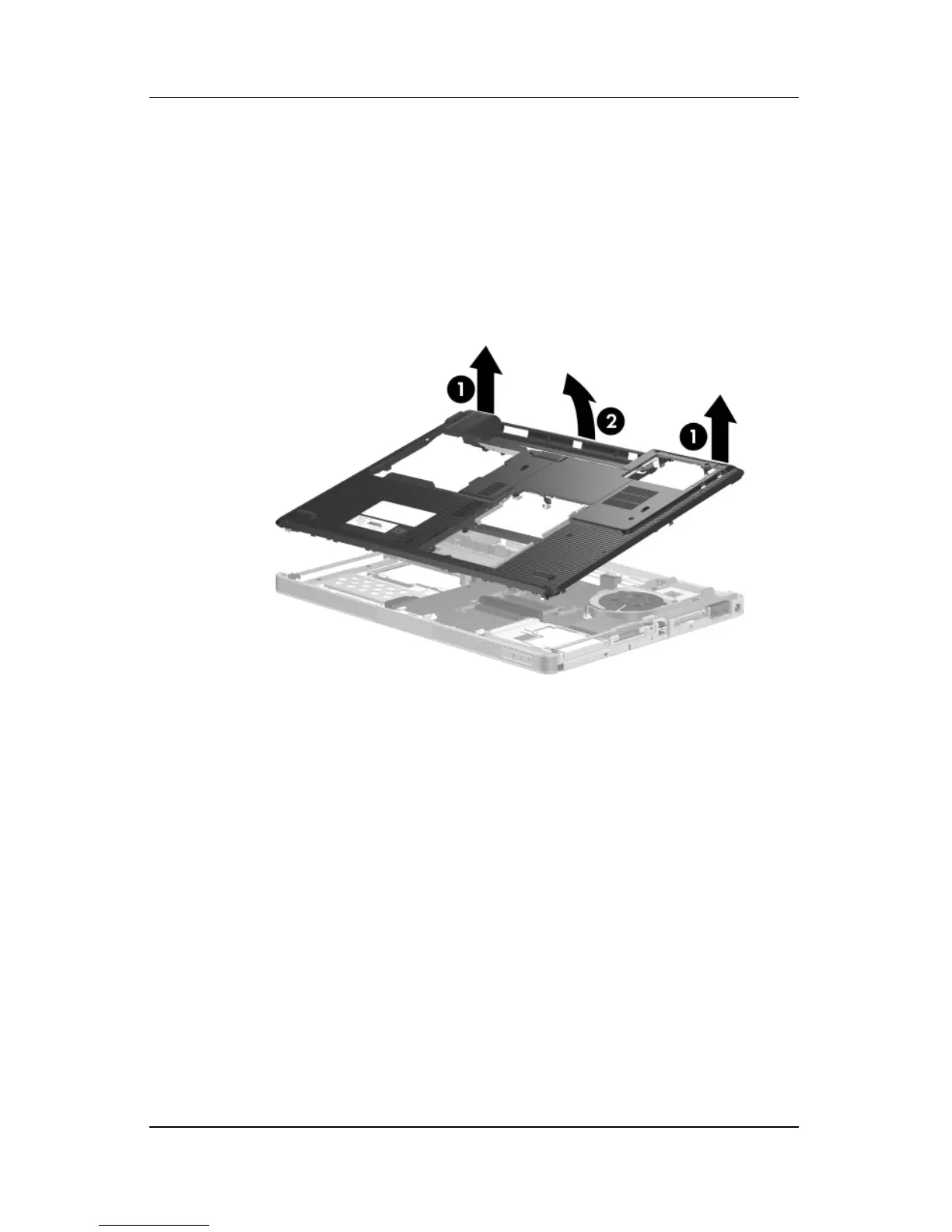

7. Lift the left and right rear corners 1 of the base enclosure
until the rear edge of the base enclosure disengages from the
notebook.
8. Swing the rear edge of the base enclosure up and forward 2
until it disengages from the notebook.
9. Remove the base enclosure.
Removing the Base Enclosure, Compaq Presario V4000 Models
Reverse the above procedure to install the base enclosure.
