HP Pavilion dv4000 User Manual

5–60 Maintenance and Service Guide
Removal and Replacement Procedures

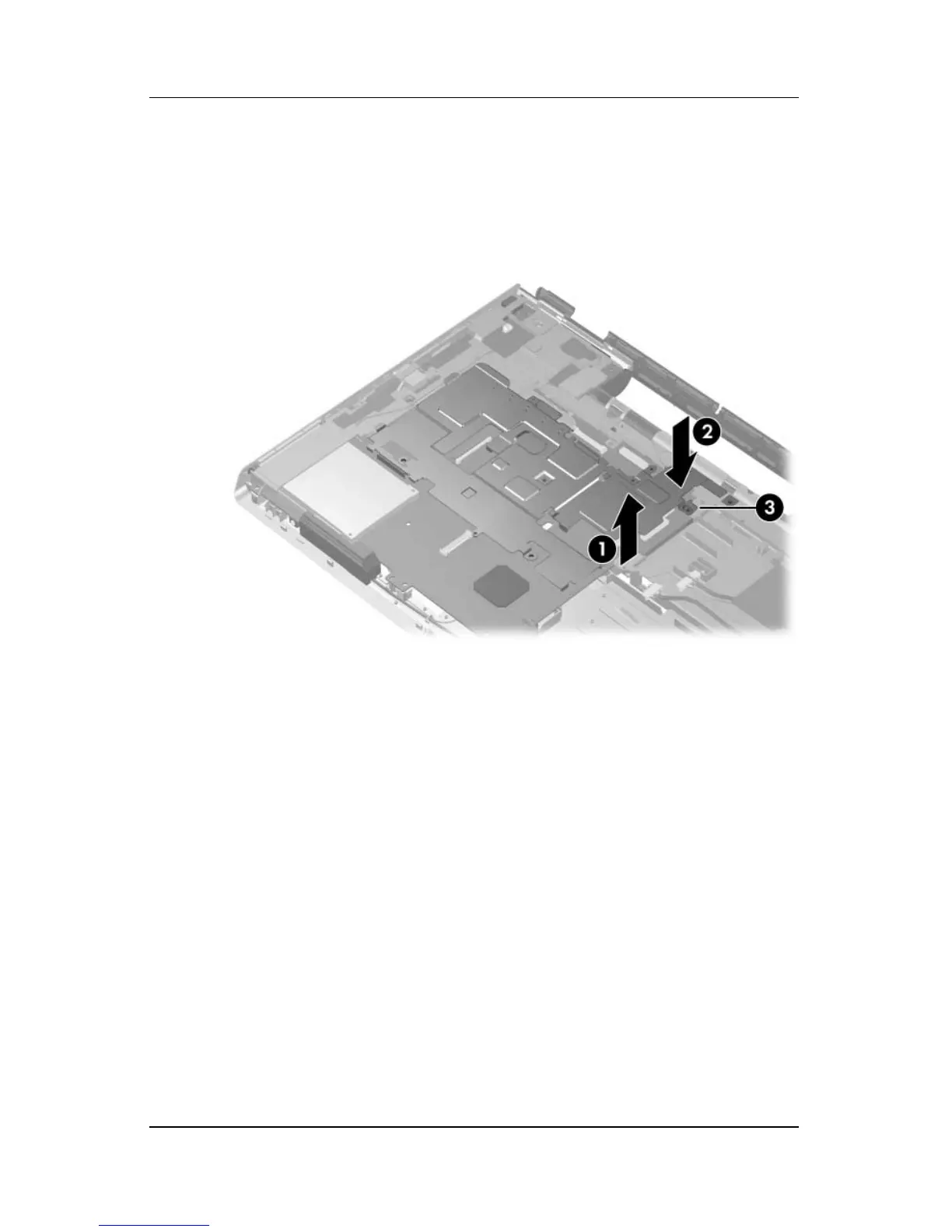

7. Lift up on the left side of the USB board frame 1.
8. Press down on the right side of the system board shield 2
until the shield tab 3 disengages from the standoff on the
bottom of the USB board frame.
Releasing the System Board Shield, Part 2,
HP Pavilion dv4000 Models

HP Pavilion dv4000 Specifications

General

Display	15.4-inch WXGA or WSXGA+
Operating System	Windows XP Home or Professional
Processor	Intel Pentium M or Intel Celeron M
Display Resolution	1280 x 800 or 1680 x 1050
RAM	256 MB to 2 GB
Storage	40 GB to 100 GB HDD
Graphics	Intel GMA 900 or ATI Mobility Radeon
Optical Drive	DVD±RW
Ports	3 USB 2.0, VGA, S-Video, Ethernet, Modem, Headphone, Microphone, IEEE 1394
Wireless	802.11b/g
Battery Life	Up to 3 hours
