Removal and Replacement Procedures
Maintenance and Service Guide 5–73
2. Remove the 3 Phillips PM2.0×4.0 screws 1 that secure the
left and right speakers to the base enclosure.
3. Remove the left and right speakers 2.

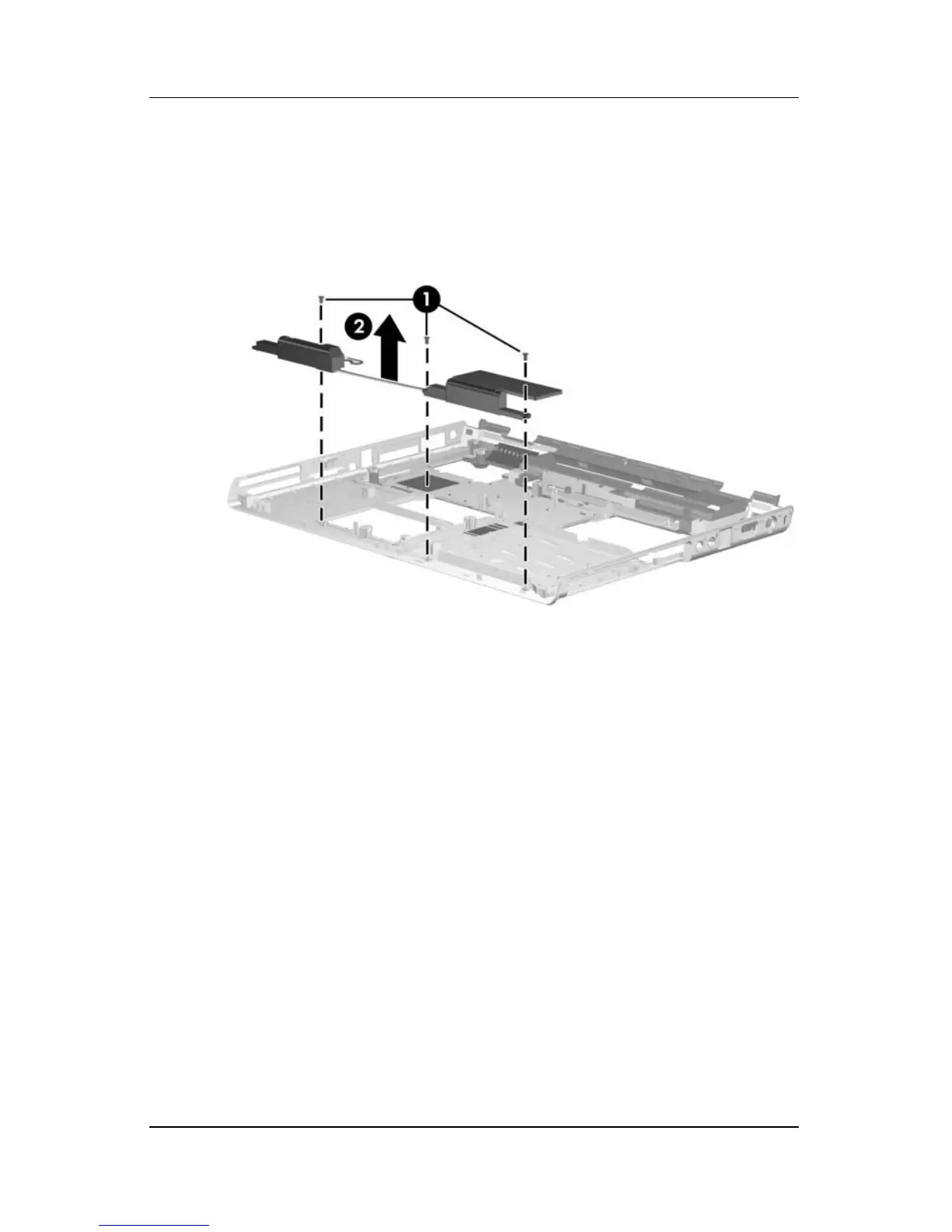

Removing the Speakers
Reverse the above procedure to install the speakers.
