5–76 Maintenance and Service Guide
Removal and Replacement Procedures

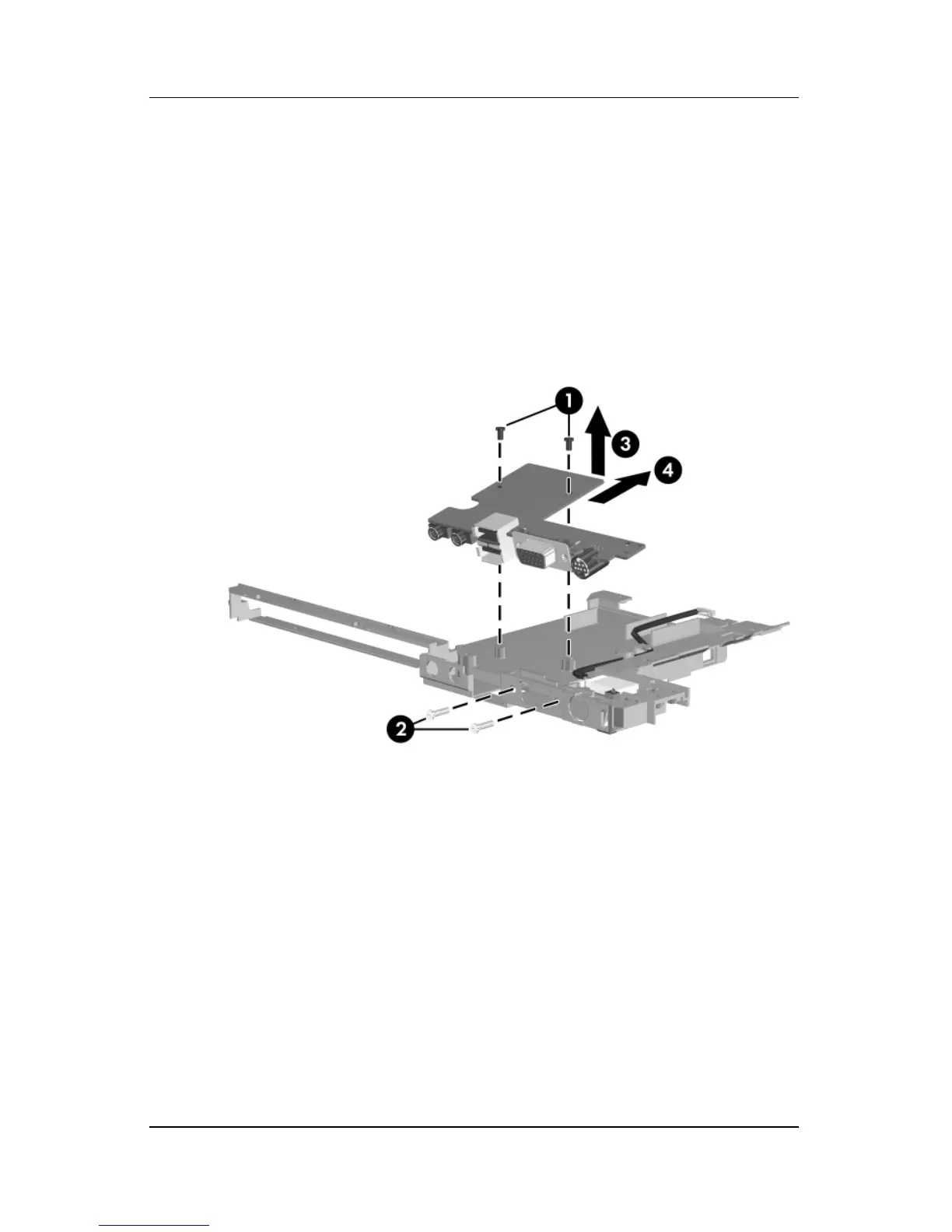

7. Remove the Phillips PM2.0×4.0 screw 1 that secures the
USB board to the frame.
8. Remove the 2 Phillips PM2.5×8.0 screws 2 that secure the
USB board to the frame.
9. Lift the rear edge of the USB board 3 until it disengages
from the frame.
10. Slide the frame away 4 and remove it.
Removing the USB Board
Reverse the above procedure to install the USB board.
