5–78 Maintenance and Service Guide
Removal and Replacement Procedures

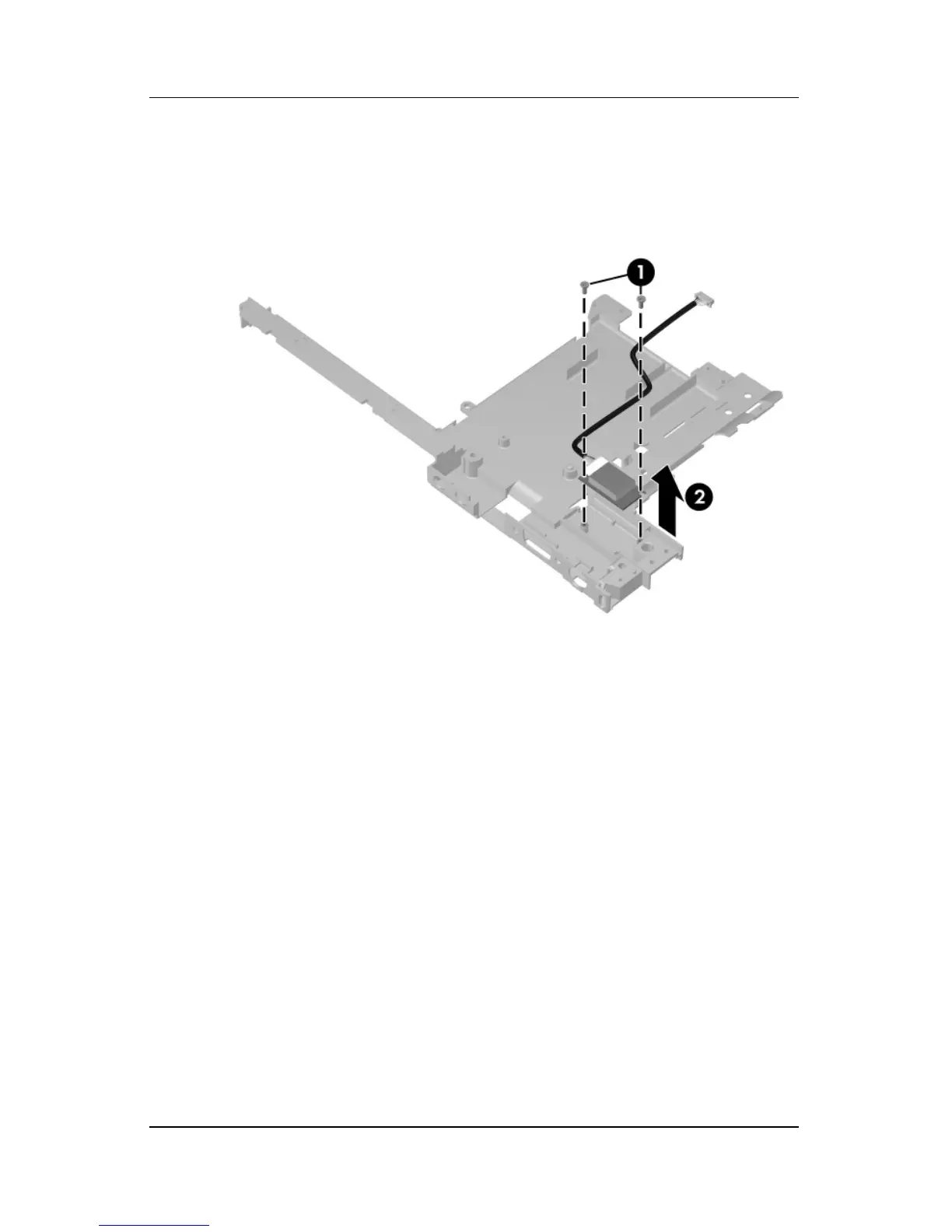

2. Remove the 2 Phillips PM1.5×4.0 screws 1 that secure the
Bluetooth board to the USB board frame.
3. Remove the Bluetooth board 2.
Removing the Bluetooth Board
Reverse the above procedure to install the Bluetooth board.
