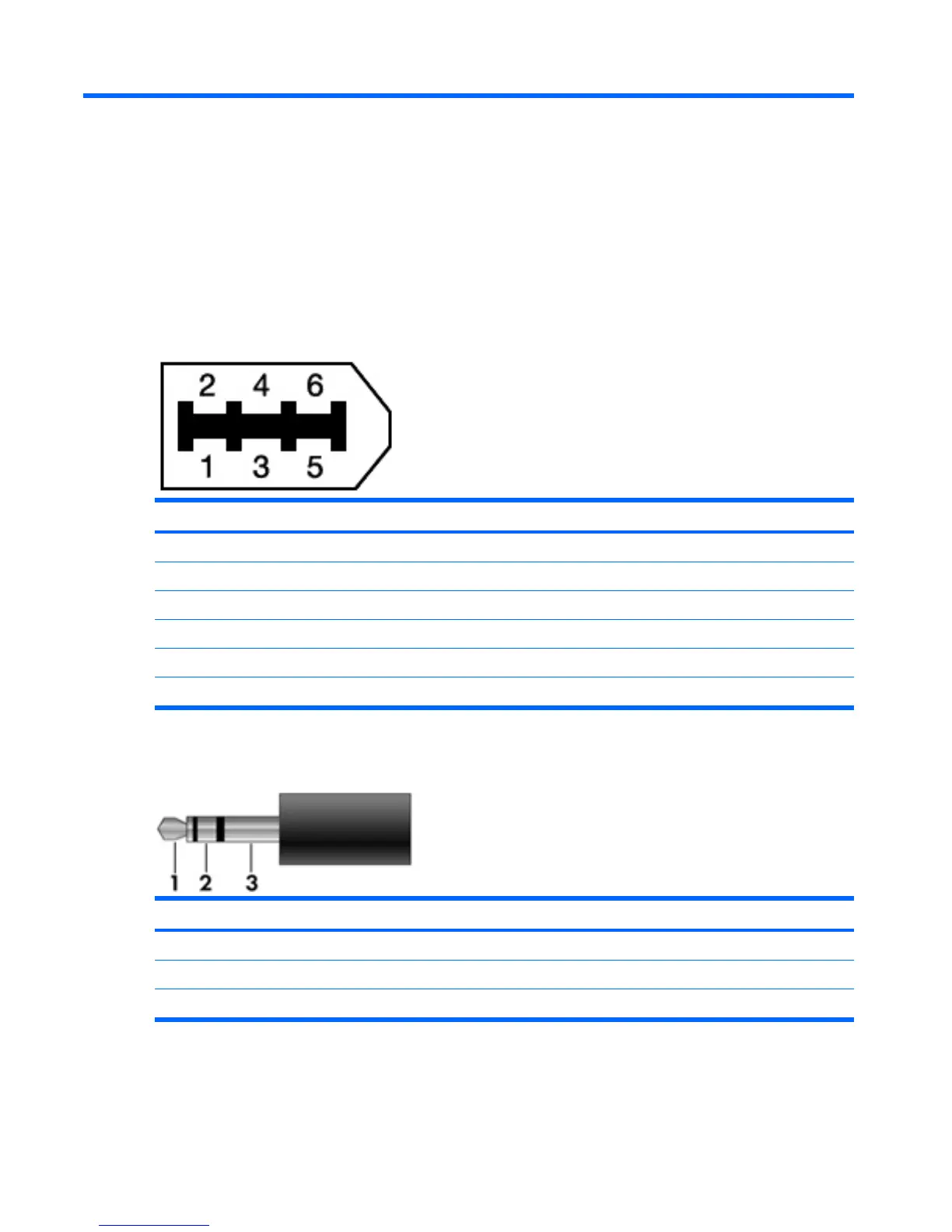

9 Connector pin assignments
1394
Pin Signal
1 Power
2 Ground
3 TPB-
4 TPB+
5 TPA-
6TPA+
Audio-in (microphone)
Pin Signal
1 Audio signal in
2 Audio signal in
3 Ground
138 Chapter 9 Connector pin assignments
