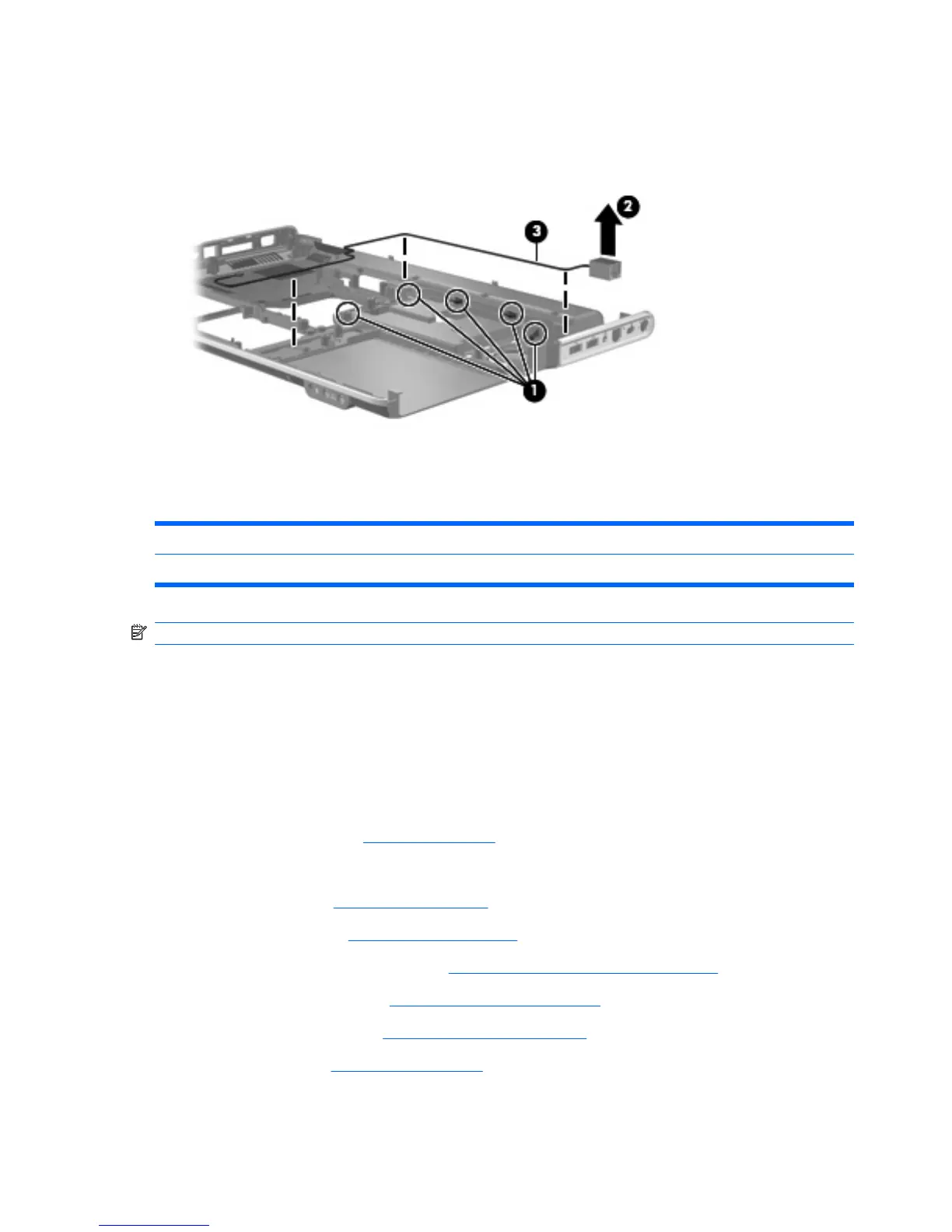

1. Release the cable from the clips (1) built into the base enclosure.
2. Remove the RJ-11 jack (2) from the clip built into the base enclosure.
3. Remove the assembly from the base enclosure (3).
Reverse this procedure to install the modem module cable.
Power connector cable
Description Spare part number
Power connector cable 536857-001
NOTE: The power connector cable is available in the Cable Kit, spare part number 501891-001.
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC Adapter from the computer.
4. Remove the battery (see
Battery on page 43).
5. Remove the following components:
a. Hard drive (see
Hard drive on page 48).
b. Optical drive (see
Optical drive on page 44).
c. Switch cover and keyboard (see
Switch cover and keyboard on page 57).
d. Speaker assembly (see
Speaker assembly on page 62).
e. Display assembly (see
Display assembly on page 64).
f. Top cover (see
Top cover on page 74).
88 Chapter 4 Removal and replacement procedures
