Power button board
NOTE: The power button board does not include the power button board cable. The power button
board cable is included in the Cable Kit, spare part number 665593-001.
Description Spare part number
Power button board 665600-001
Before removing the power button board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 47), and then remove the following components:
●
Optical drive (see
Optical drive on page 48)
●
Hard drive (see
Hard drive on page 51)
●
Keyboard (see
Keyboard on page 59)
●
Top cover (see
Top cover on page 62)

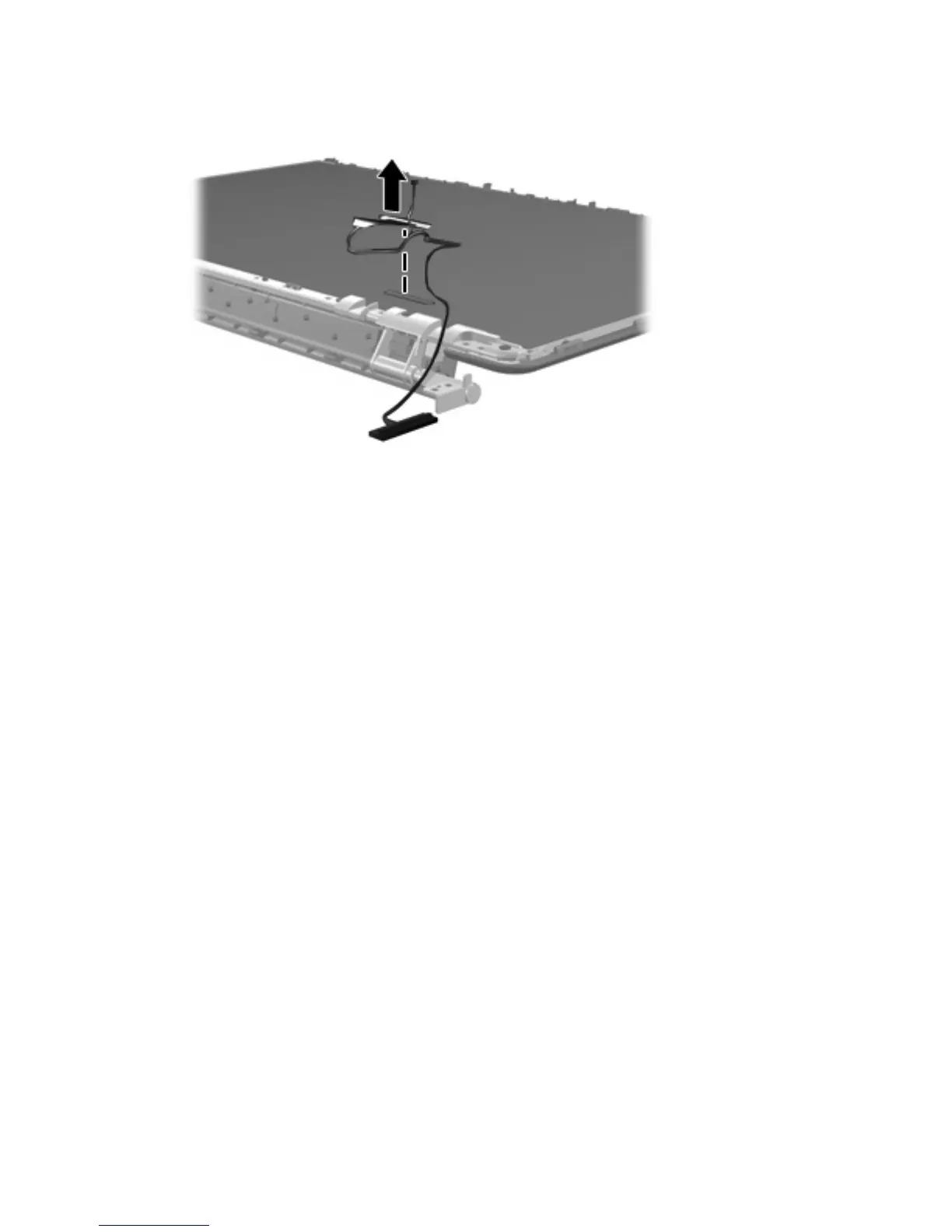

Remove the power button board:
1. Turn the top cover upside down, with the front toward you.
2. Release the power button board cable from the tab (1) on the top cover.
3. Disconnect the display lid switch board cable (2) from the power button board.
4. Remove the two Phillips PM2.0×4.0 screws (3) that secure the power button board to the
top cover.
68 Chapter 4 Removal and replacement procedures
