Power connector cable
Description Spare part number
Power connector cable 665596-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 47), and then remove the following components:
●
Optical drive (see
Optical drive on page 48)
●
Hard drive (see
Hard drive on page 51)
●
Keyboard (see
Keyboard on page 59)
●
Top cover (see
Top cover on page 62)
Remove the power connector cable:

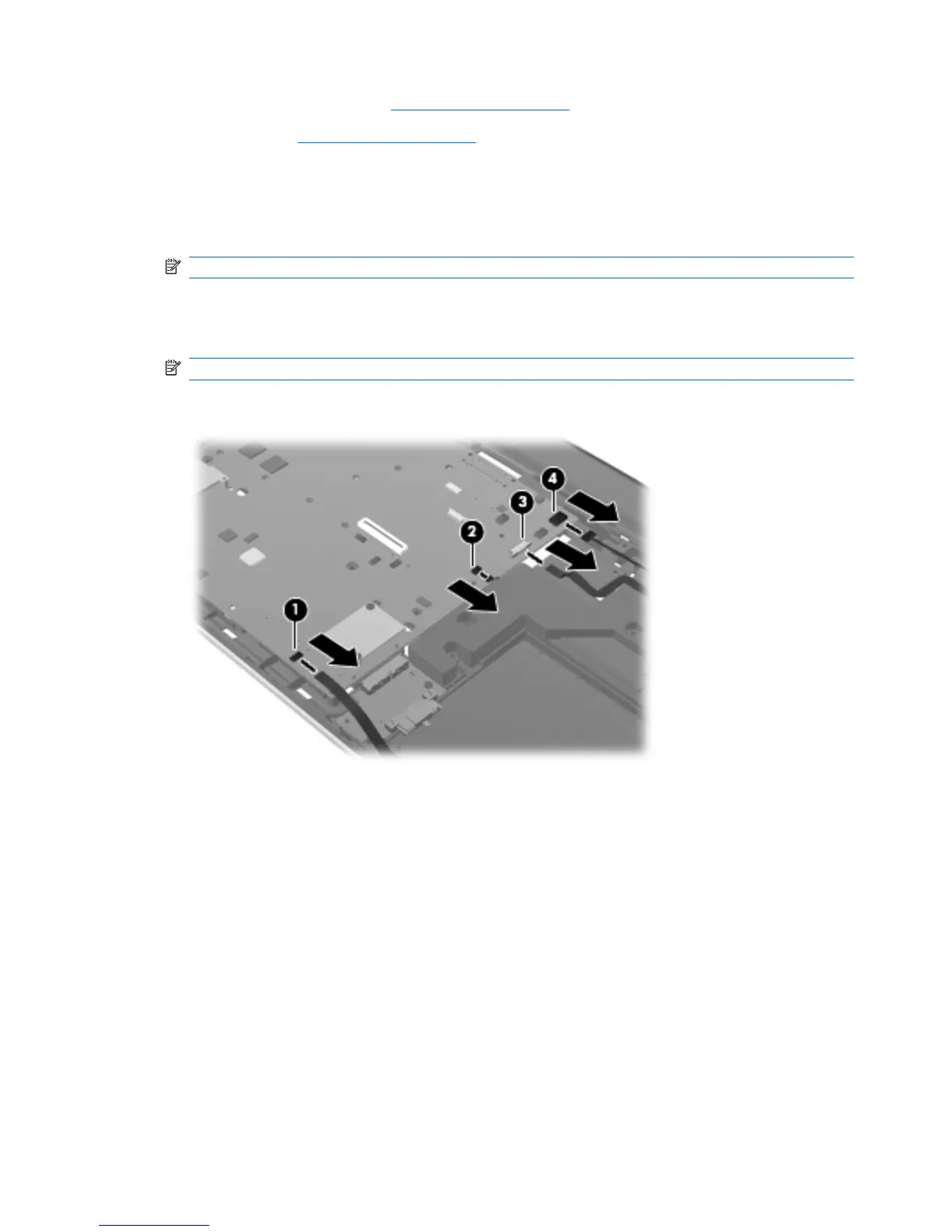

1. Release the power connector cable from the clips (1) built into the base enclosure.
2. Disconnect the power connector cable (2) from the system board.
3. Remove the two Phillips PM2.0×4.0 screws (3) that secure the power connector to the
base enclosure.
80 Chapter 4 Removal and replacement procedures
