4.

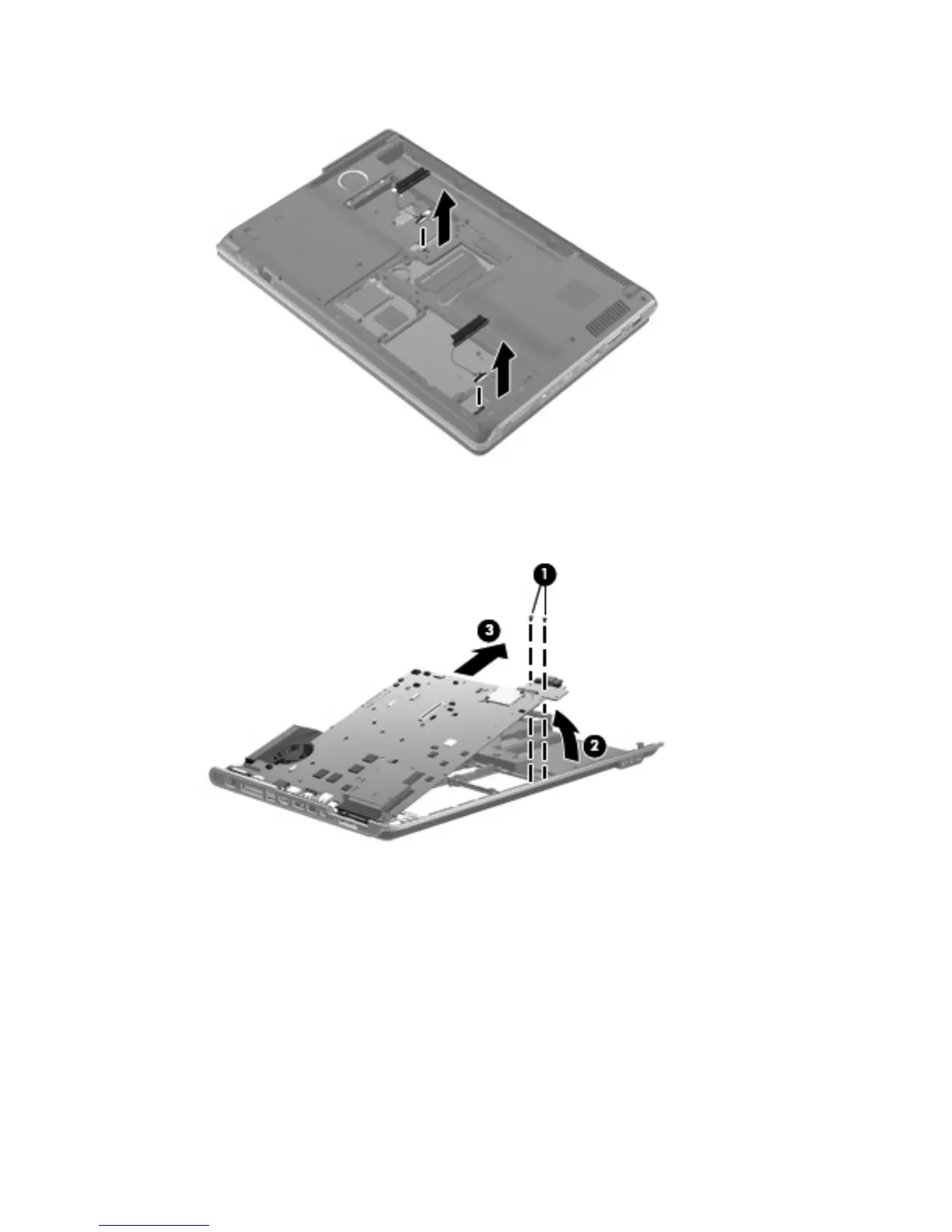

Remove the power connector (4) from the base enclosure.
Reverse this procedure to install the power connector cable.
System board
NOTE: The system board spare part kit includes replacement thermal material.
Description Spare part number
For use only with computer models equipped with an AMD processor:
For use only with computer models equipped with a graphics subsystem with discrete memory 666520-001
For use only with computer models equipped with a graphics subsystem with UMA memory 666518-001
For use only with computer models equipped with an Intel processor:
For use only with computer models equipped with the Intel 6770 chipset, a quad core processor, and
a graphics subsystem with 2048-MB of discrete memory
665991-001
For use only with computer models equipped with the Intel 6770 chipset, a dual core processor, and
a graphics subsystem with 2048-MB of discrete memory
665992-001
For use only with computer models equipped with the Intel 6770 chipset, a quad core processor, and
a graphics subsystem with 1024-MB of discrete memory
665988-001
For use only with computer models equipped with the Intel 6770 chipset, a dual core processor, and
a graphics subsystem with 1024-MB of discrete memory
665989-001
For use only with computer models equipped with the Intel 6490 chipset, a quad core processor, and
a graphics subsystem with 1024-MB of discrete memory
665986-001
For use only with computer models equipped with the Intel 6490 chipset, a dual core processor, and
a graphics subsystem with 1024-MB of discrete memory
665987-001
For use only with computer models equipped with the Intel HM65 chipset, a quad core processor,
and a graphics subsystem with UMA memory
665993-001
Component replacement procedures
81
