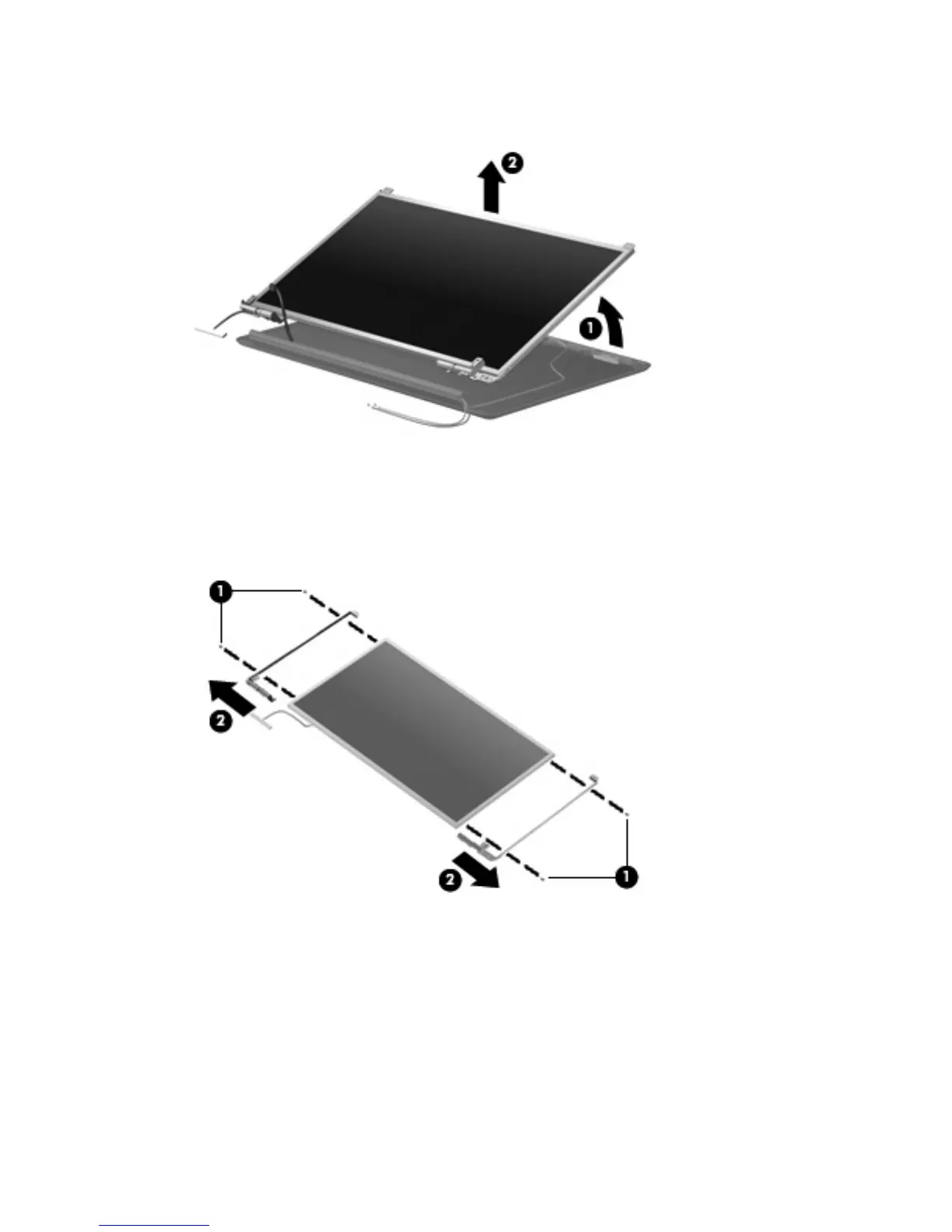

25. Flex the bottom of the display panel (1) back and release the display hinges. Remove the display
panel (2).
26. If it is necessary to replace the display hinges, remove the four Phillips PM2.0×3.0 screws (1) that
secure each display hinge to the display panel.
27. Remove the display hinges (2). The display hinges are available in the Display Hinge Bracket Kit,
spare part 516306-001. The display hinge screws are available in the Display Screw Kit, spare part
number 516309-001.
72 Chapter 4 Removal and replacement procedures
