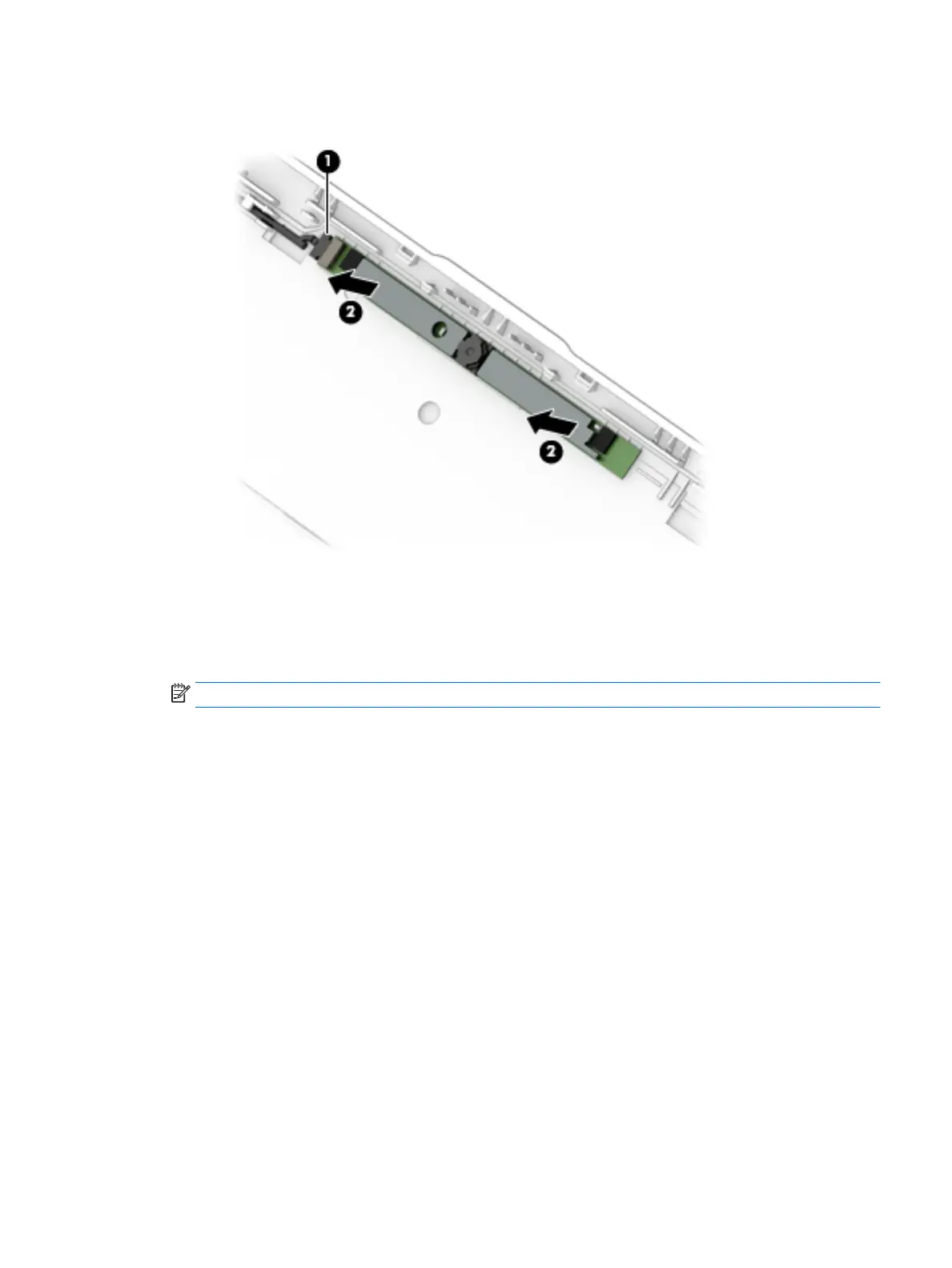

c. Detach the webcam/microphone module (2) from the display back cover. (The webcam/
microphone module is attached to the display back cover with double-sided adhesive.)
d. Remove the webcam/microphone module.
The webcam/microphone module is available using spare part numbers 924477-001 (FHD infrared
webcam/microphone module) and 924478-001 (HD non-infrared webcam/microphone module).
6. If it is necessary to replace the display hinges:
NOTE: It is necessary to remove the display assembly to remove and replace the display hinge.
a. Remove the display panel assembly.
b. Remove the six Phillips PM2.5×2.9 broad head screws (1) that secure the hinges to the display
back cover.
c. Rotate the hinges (2) toward the inside of the display back cover to release them from the display
back cover.
Component replacement procedures 53
