4. Lift the connector side of the cover up to a 45-degree angle (2), and then lift the cover off the
computer (3).

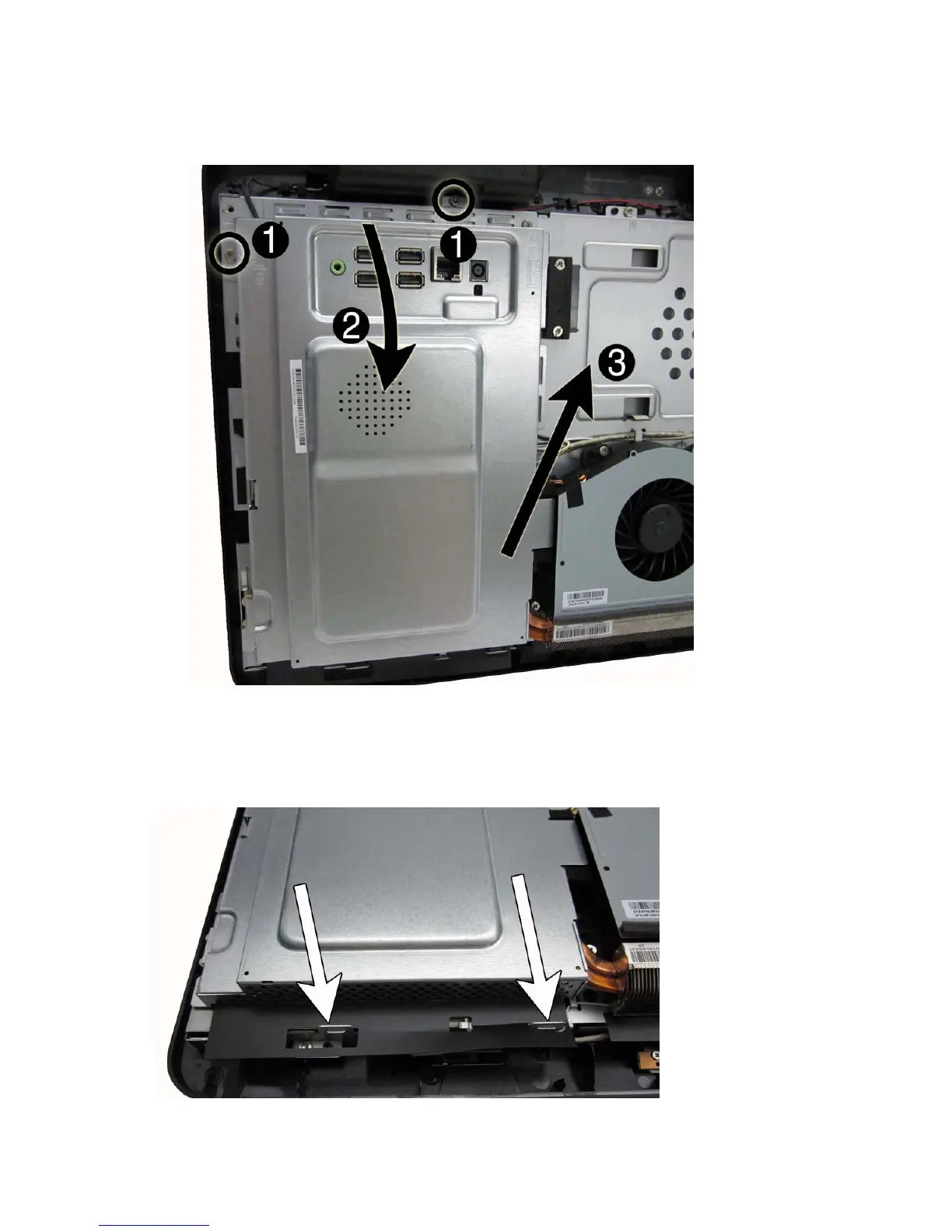

Figure 7-18 Removing the system board cover
To install the system board cover, reverse the removal procedures.
When replacing the cover, note the tabs that fit into slots in the computer on the side opposite the
screws.
Figure 7-19 Replacing the system board cover
50 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
