Front Bezel
Description Spare part number
Front bezel for use in models with a webcam 667106-001
Front bezel for use in models without a webcam 667107-001
The front bezel is located on the front of the computer and is secured to the display panel bracket
with five screws. You can remove the bezel without removing most of the main computer
components, which the following procedure demonstrates.
To remove the front bezel while removing the minimal number of components:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 33).
2. Remove the rear cover (see
Rear Cover on page 34).
3. Remove the system board cover (1) (see
System Board Cover on page 49).
4. Remove the speakers (2) (see
Speakers on page 66).
5. Remove the 5 screws (3) that secure the bezel to the computer.
6. Lift the 6 tabs that secure the bezel to the computer (5).

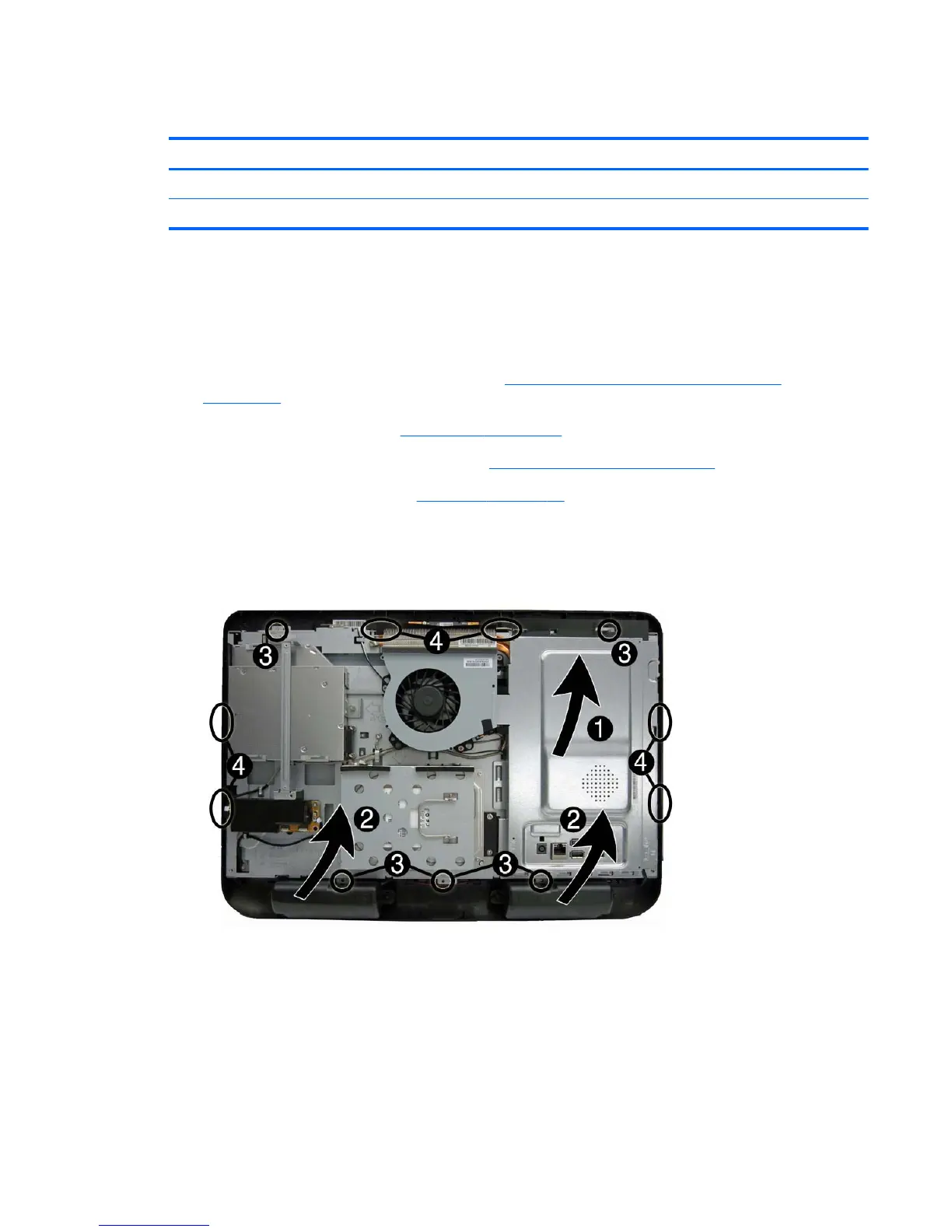

Figure 7-38 Removing the front bezel
7. Lift the computer from the bezel.
To install the front bezel, reverse the removal procedures.
Front Bezel 69
