5. Remove screw (2) that secures the module to the computer.
6. Lift the module to a 45-degree angle, and then pull it away to remove it from the socket (3)

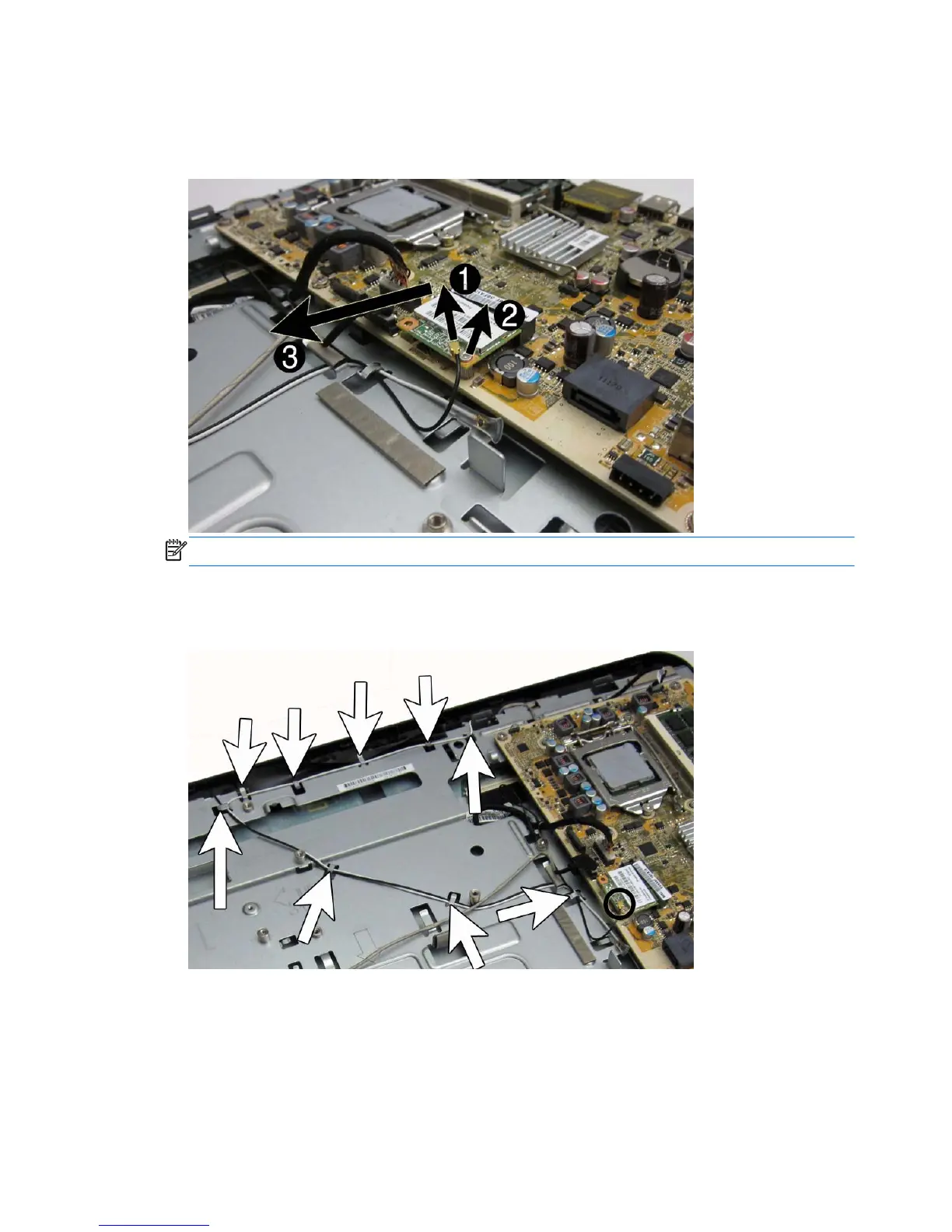

Figure 7-23 Removing the WLAN module
NOTE: WLAN modules are designed with a notch to prevent incorrect insertion.
7. If you need to replace the WLAN antennas, remove them from the routing path built into the
computer.
Figure 7-24 Removing the WLAN antennas from the routing path
54 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
