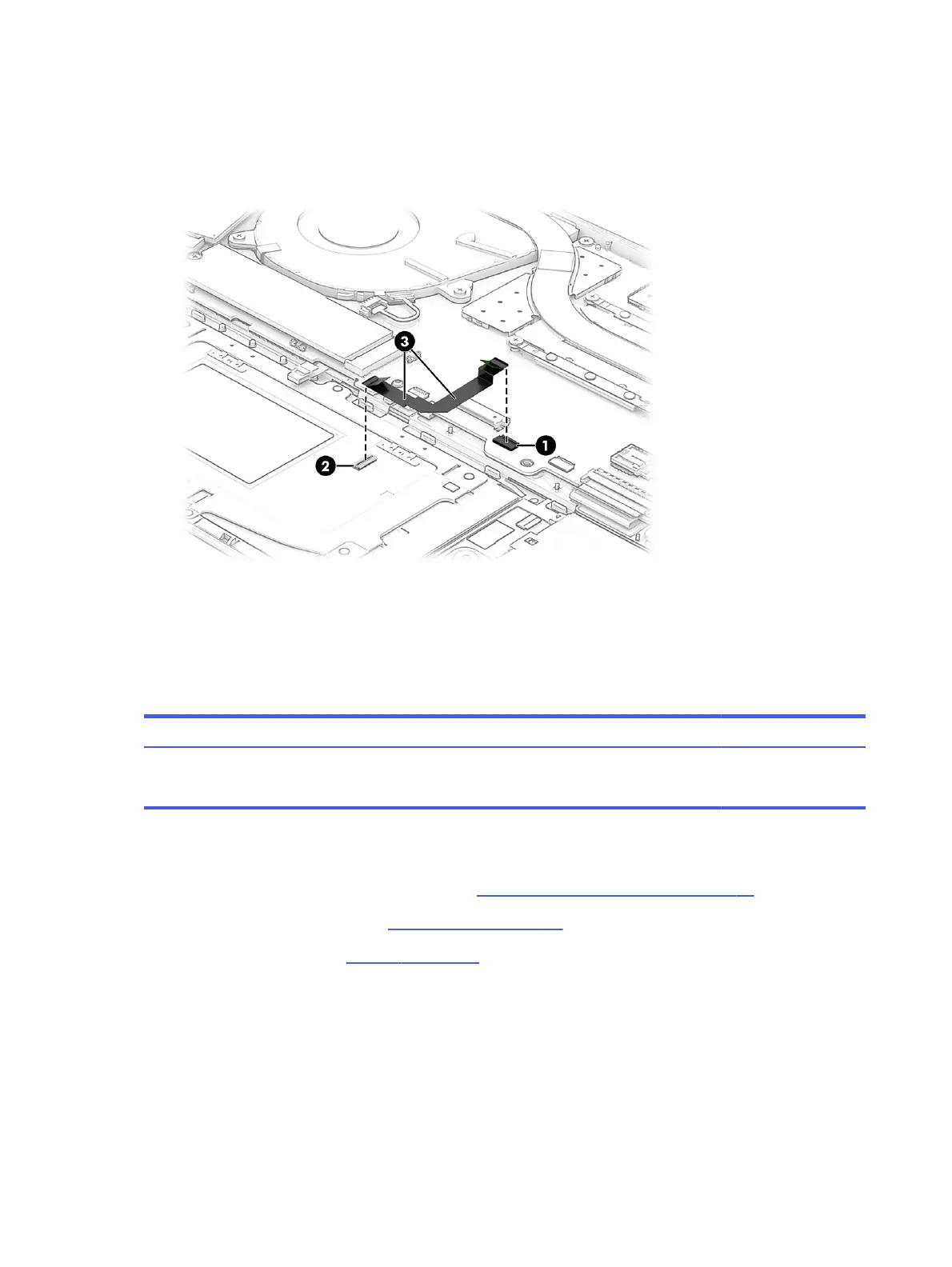

2. Release the ZIF connector (2) the touchpad cable is connected to, and then disconnect the cable
from the touchpad.
3. Detach the touchpad cable (3) from the top cover with keyboard. (The touchpad cable is attached
with double-sided adhesive.)
To install the touchpad cable, reverse this procedure.
Touchpad
To remove the touchpad, use this procedure and illustration.
Table 5-4
Touchpad description and part number
Description Spare part number
Touchpad
NOTE: The touchpad cable is available in the Cable Kit, spare part number M03431-001.
M46283-001
Before removing the touchpad, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 34).
2. Remove the bottom cover (see Bottom cover on page 34).
3. Remove the battery (see Battery on page 35).
Remove the touchpad:
1. Disconnect the cable from the ZIF connector on the touchpad (1).
2. Lift the protective shielding from the top of the touchpad (2).
3. Remove the five Phillips M2.0 × 2.3 screws (3) that secure the touchpad to the computer.
38
Chapter 5 Removal and replacement procedures for authorized service provider parts
