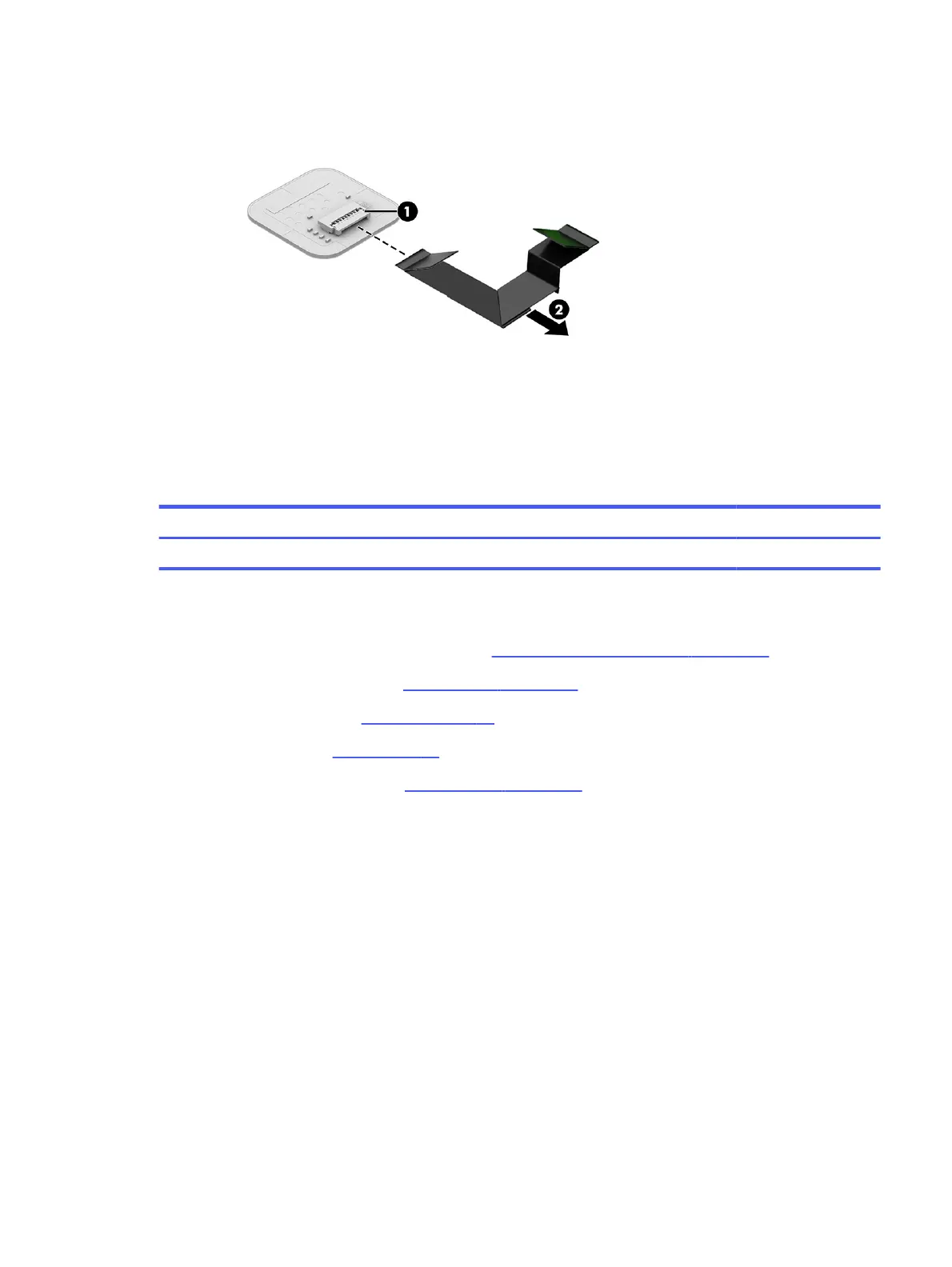

Release the ZIF connector (1) the fingerprint reader cable is connected to, and then disconnect the
cable (2) from the fingerprint reader.
To install the fingerprint reader cable, reverse this procedure.
Power connector cable
To remove the power connector cable, use this procedure and illustration.
Table 5-15
Power connector cable description and part number
Description Spare part number
Power connector cable M03424-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 34).
2. Remove the bottom cover (see Bottom cover on page 34).
3. Remove the battery (see Battery on page 35).
4. Remove the fan (see Fan on page 48).
5. Remove the system board (see System board on page 52).
Remove the power connector cable:
Power connector cable
57
