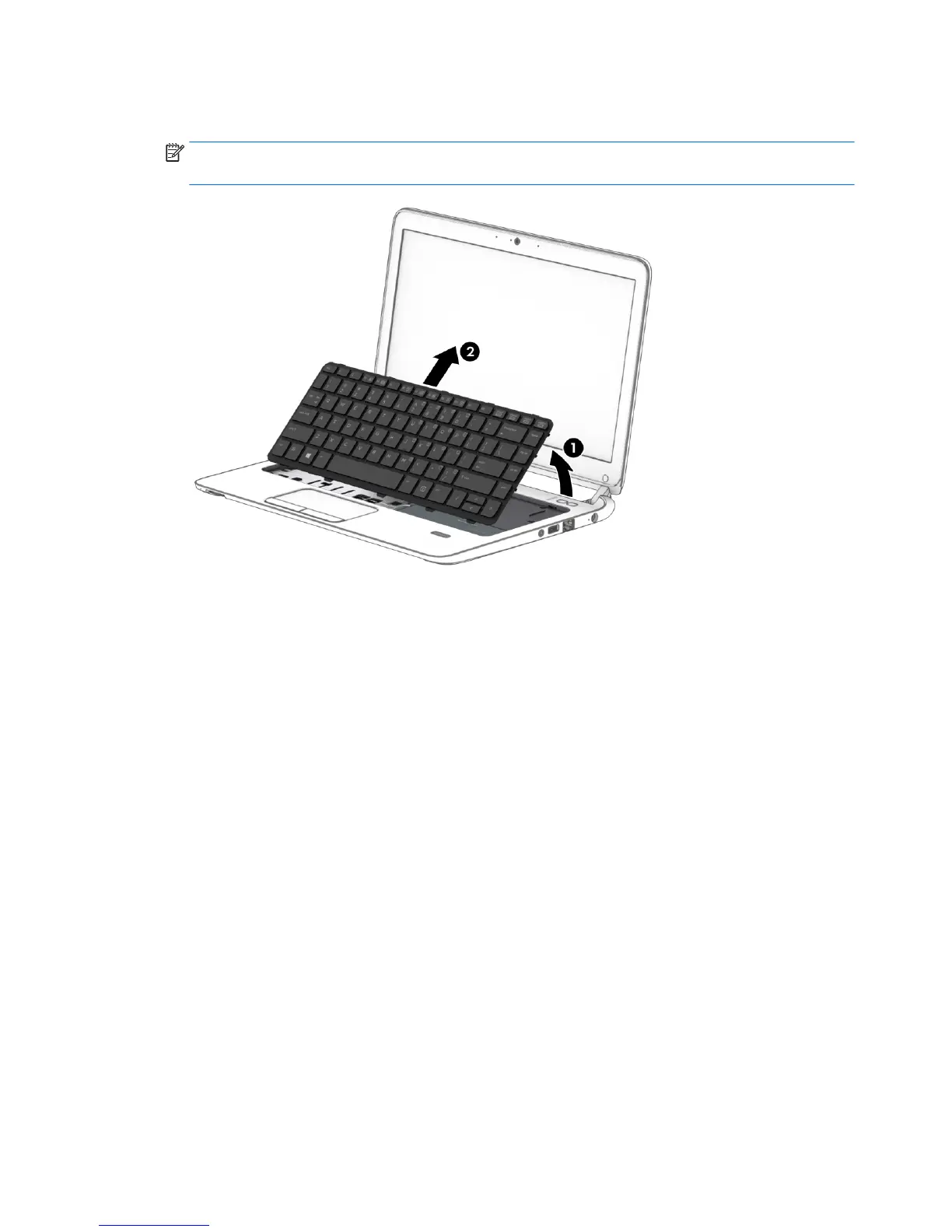

5. Rotate the top of the keyboard upward (1), and then lift the keyboard up at an angle (2) to disengage the
tabs at the bottom of the keyboard.
NOTE: A cable connects the bottom of the keyboard to the system board. Make sure not to
prematurely pull the keyboard cable out of the system board connector.
6
. Rotate the keyboard until it rests on the palm rest (1).
42 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
