HP ProBook 430 G2 Maintenance And Service Guide

Top cover
NOTE: Top cover spare part kits include the touchpad assembly.
Description Spare part number
Top cover for use in models with a ngerprint reader (includes touchpad) 768213-001
Top cover for use in models without a ngerprint reader (includes touchpad) 773562-001
Before removing the top cover, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the following components:
a. Battery (see Battery on page 30).
b. Service door (see Service door on page 31).
c. Hard drive (Hard drive on page 32)
d. Keyboard (see Keyboard on page 40)
Remove the top cover:

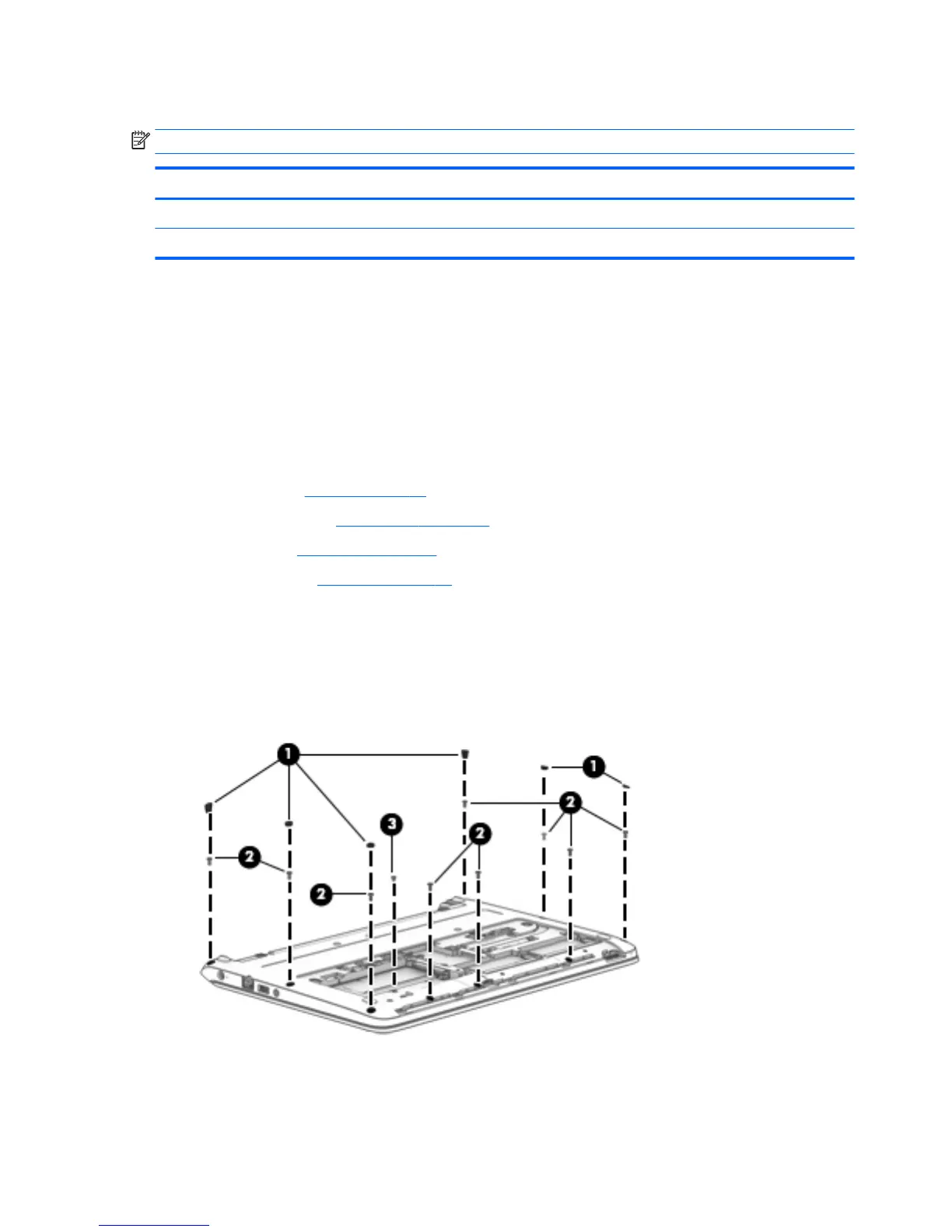

1. Position the computer upside-down with the front toward you.
2. Remove the 6 rubber screw covers and 9 Torx T8M2.5×5.0 screws that secure the top cover to the
computer.
3. Remove the 1 Phillips PM2.5×3.0 screws that secure the top cover to the computer.
4. Position the computer upright and open it as far as possible.
48 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

HP ProBook 430 G2 Specifications

General

Form factor	Clamshell
Product type	Laptop
Product color	Black, Grey
Country of origin	China
Bus type	DMI2
Stepping	D0
Tjunction	100 °C
Processor cache	3 MB
Processor cores	2
Processor model	i5-4210U
System bus rate	5 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-4200 Mobile series
Processor socket	BGA 1168
Processor threads	4
Processor codename	Haswell
Processor frequency	1.7 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	2.7 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	4x1, 2x4
Thermal Design Power (TDP)	15 W
Maximum number of PCI Express lanes	12
Motherboard chipset	-
Memory slots	2x SO-DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
Memory layout (slots x size)	1 x 4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	SATA
Storage media	SSD
Card reader integrated	Yes
Total storage capacity	128 GB
Number of SSDs installed	1
Display diagonal	13.3 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
On-board graphics card ID	0xA16
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 4400
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
Intel segment tagging	Enterprise, Professional
Audio system	DTS Sound+
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
DisplayPorts quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Pointing device	Touchpad
Recovery operating system	Windows 8.1 Pro
Operating system installed	Windows 7 Professional
Processor code	SR1EF
Processor ARK ID	81016
Intel TSX-NI version	0.00
Processor package size	40 x 24 x 1.5 mm
Intel ME Firmware Version	9.5
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Smart Connect Technology version	1.00
Battery capacity	44 Wh
Battery life (max)	- h

Weight and Dimensions

Depth	233.5 mm
Width	326 mm
Weight	1500 g
Height (rear)	21 mm
Height (front)	20 mm
