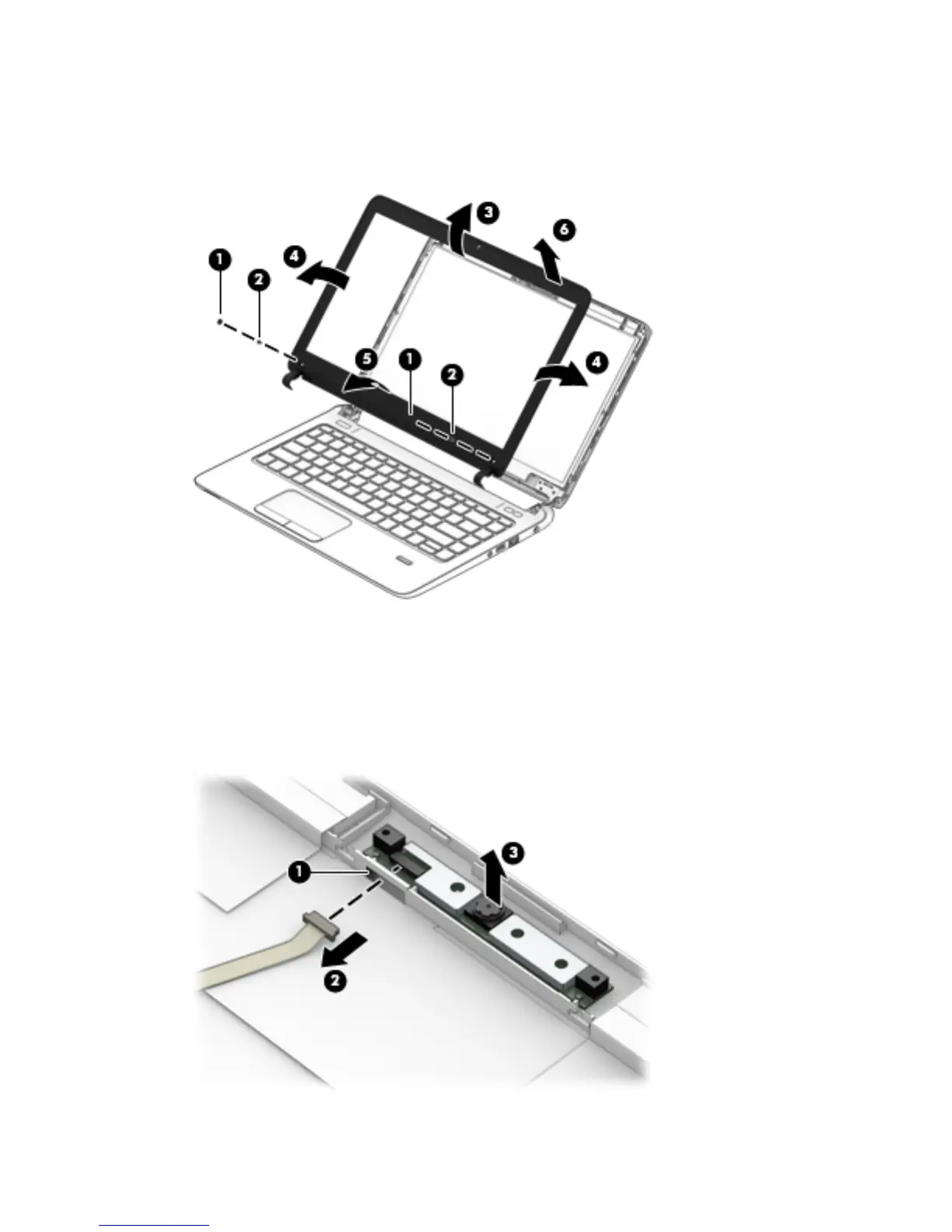

4. Remove the display bezel (6).
The display bezel is available using spare part number 768194-001 for models with a webcam and
768195-001 for models without a webcam. Display bezel mylar screw covers are available in the Rubber
Kit, spare part number 768208-001.
5. If it is necessary to replace the webcam or microphone module, note that cable connects through the
hole in the ledge (1) on the display enclosure. Disconnect the cable from the module (2), and then gently
pull the module away from the double-sided tape on the display enclosure (3).
The webcam module is available using spare part number 767457-001 or 807958-001 for an HD Lync
webcam.
The microphone module is available using spare part number 773563-001.
46 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
