HP ProBook 430 G2 - Page 74

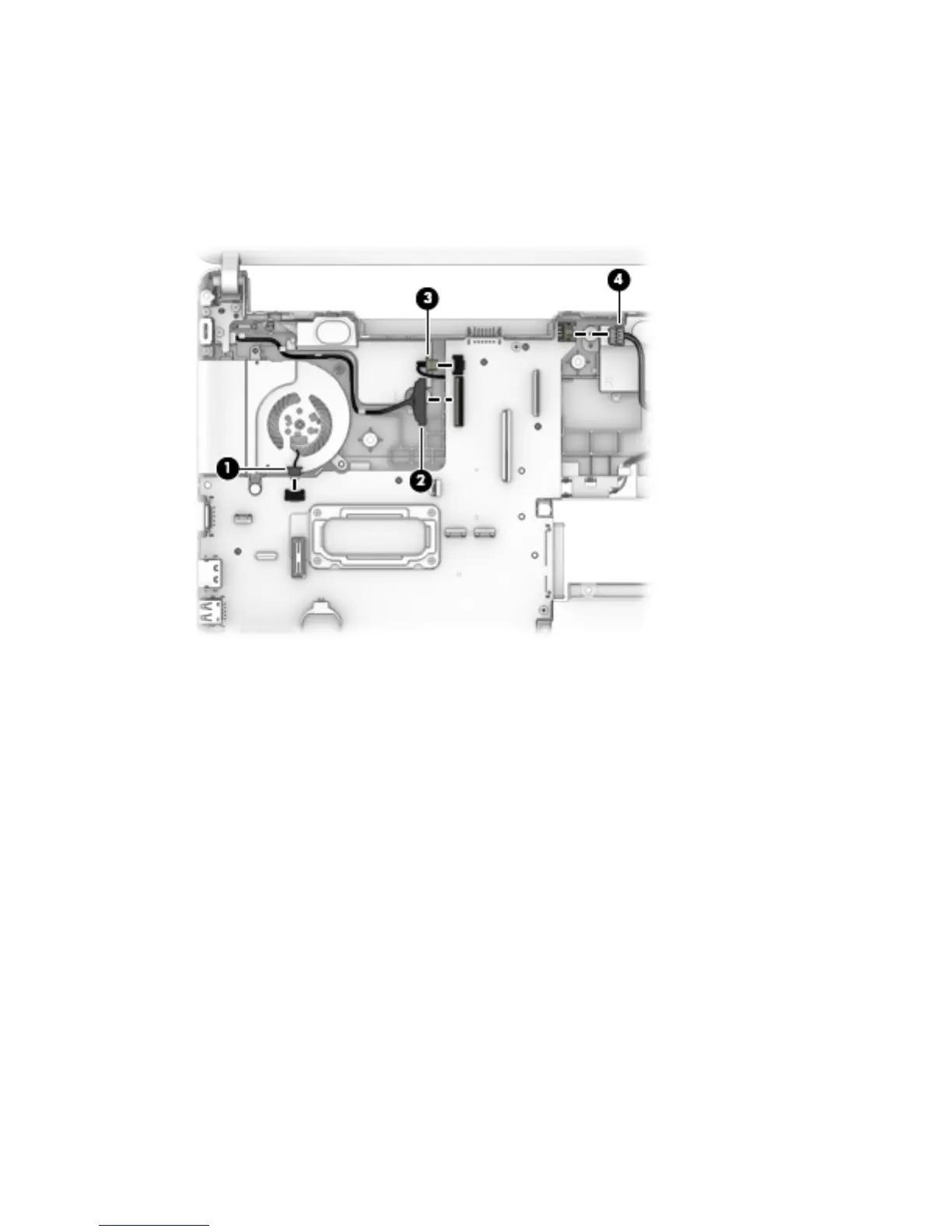

2. Disconnect the following cables from the system board:
(1) Fan cable
(2) Display cable
(3) Speaker cable
(4) Power connector cable
3. Remove the 3 Phillips PM2.5×3.0 screws (1) that secure the system board to the computer.
4. Lift the right side of the system board up at an angle (2).
62 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
