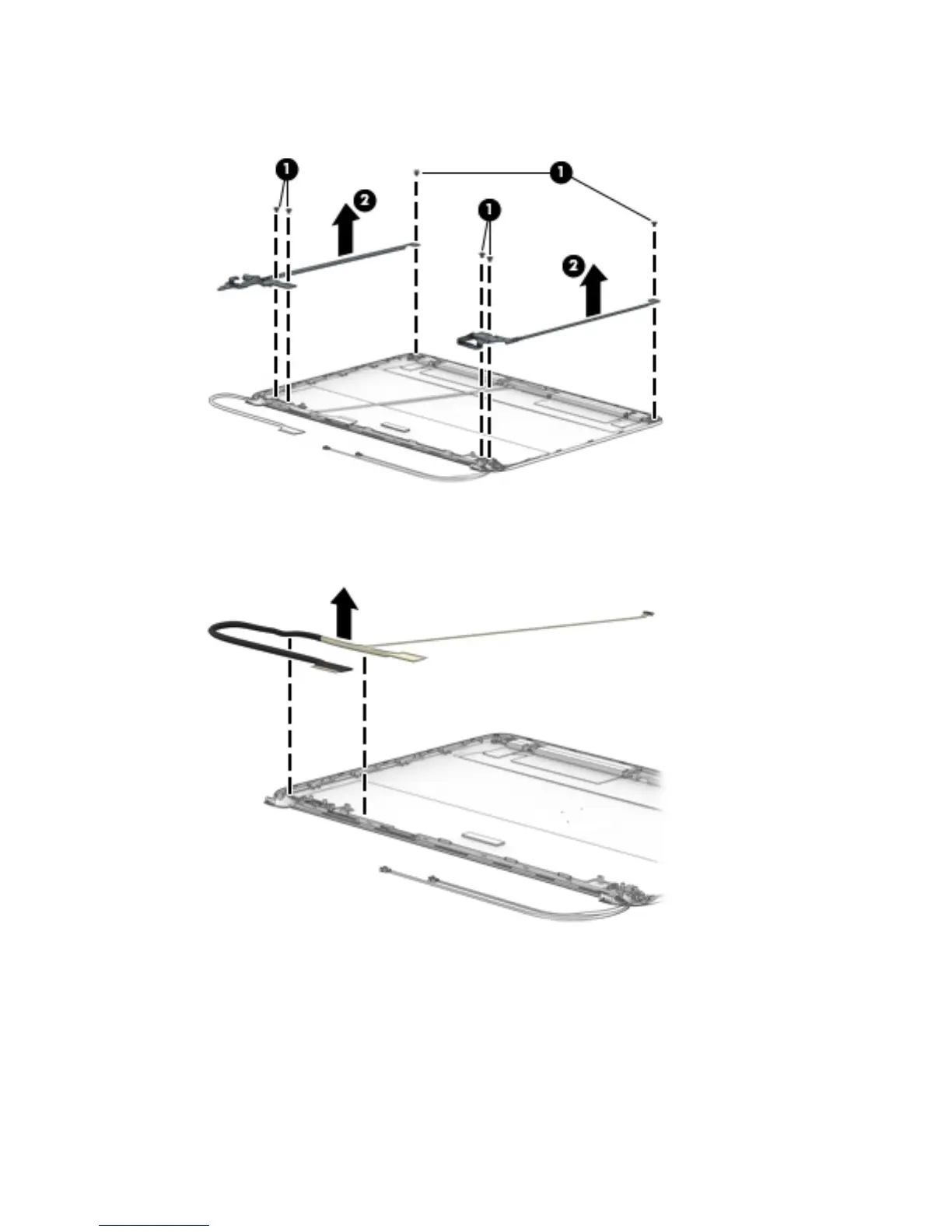

15. Remove the display hinges from the display enclosure (2).
Display hinges are available in the Display Hinge Kit using spare part number 768202-001.
16. If it is necessary to replace the display/webcam cable, lift the display/webcam cable assembly straight
up and o the display panel.
The display cable is available in the Cable Kit using spare part number 768196-001.
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures 75
