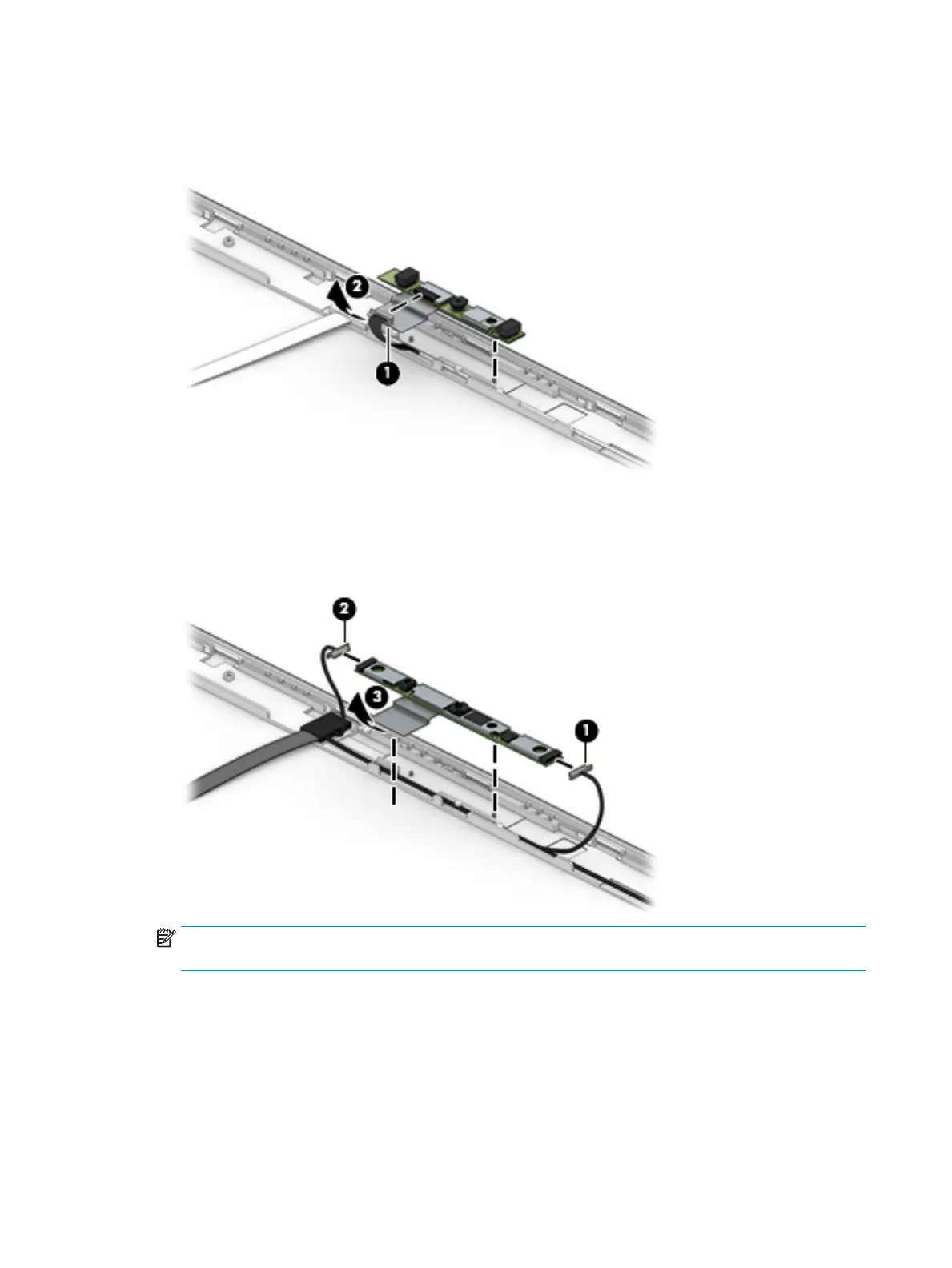

10. If it is necessary to remove or replace the HD camera, disconnect the cable from the camera (1), and
then peel the silver tape up to remove the module from the enclosure (2).
The HD camera is available as spare part number L52224-001.
11. If it is necessary to remove or replace the IR camera, disconnect the cable from the right (1) and left (2)
sides of the camera, and then peel the camera module up to remove it from the adhesive that secures it
to the enclosure (3) .
The HD+IR camera is available as spare part number L52225-001.
NOTE: You must remove the display assembly from the computer to remove the remaining display
subcomponents.
12. If it is necessary to remove the display assembly from the computer:
a. Disconnect the antennas from the WLAN module (1) (select models only).
b. Remove the antenna cables from the routing channel in the speaker (2).
60 Chapter 6 Removal and replacement procedures for authorized service provider parts
