Configuring Port-Based Access Control (802.1X)
Displaying 802.1X Configuration, Statistics, and Counters
Status Indicator Meaning
Unauthorized VLAN
ID
< vlan-id >: Lists the VID of the static VLAN configured as the unauthorized VLAN for the indicated
port.
0: No unauthorized VLAN has been configured for the indicated port.
< vlan-id >: Lists the VID of the static VLAN configured as the authorized VLAN for the indicated port.
0: No authorized VLAN has been configured for the indicated port.
Authorized VLAN ID
Current VLAN ID < vlan-id >: Lists the VID of the static, untagged VLAN to which the port currently belongs.
No PVID: The port is not an untagged member of any VLAN.
Syntax: show vlan < vlan-id >
Displays the port status for the selected VLAN, including an
indication of which port memberships have been temporarily
overridden by Open VLAN mode.
Note that ports B1 and B3 are
not in the upper listing, but are
included under “Overridden
Port VLAN configuration”. This
shows that static, untagged
VLAN memberships on ports B1
and B3 have been overridden
by temporary assignment to the
authorized or unauthorized
VLAN. Using the show port-
access authenticator < port-
list > command shown in figure
8-5 provides details.

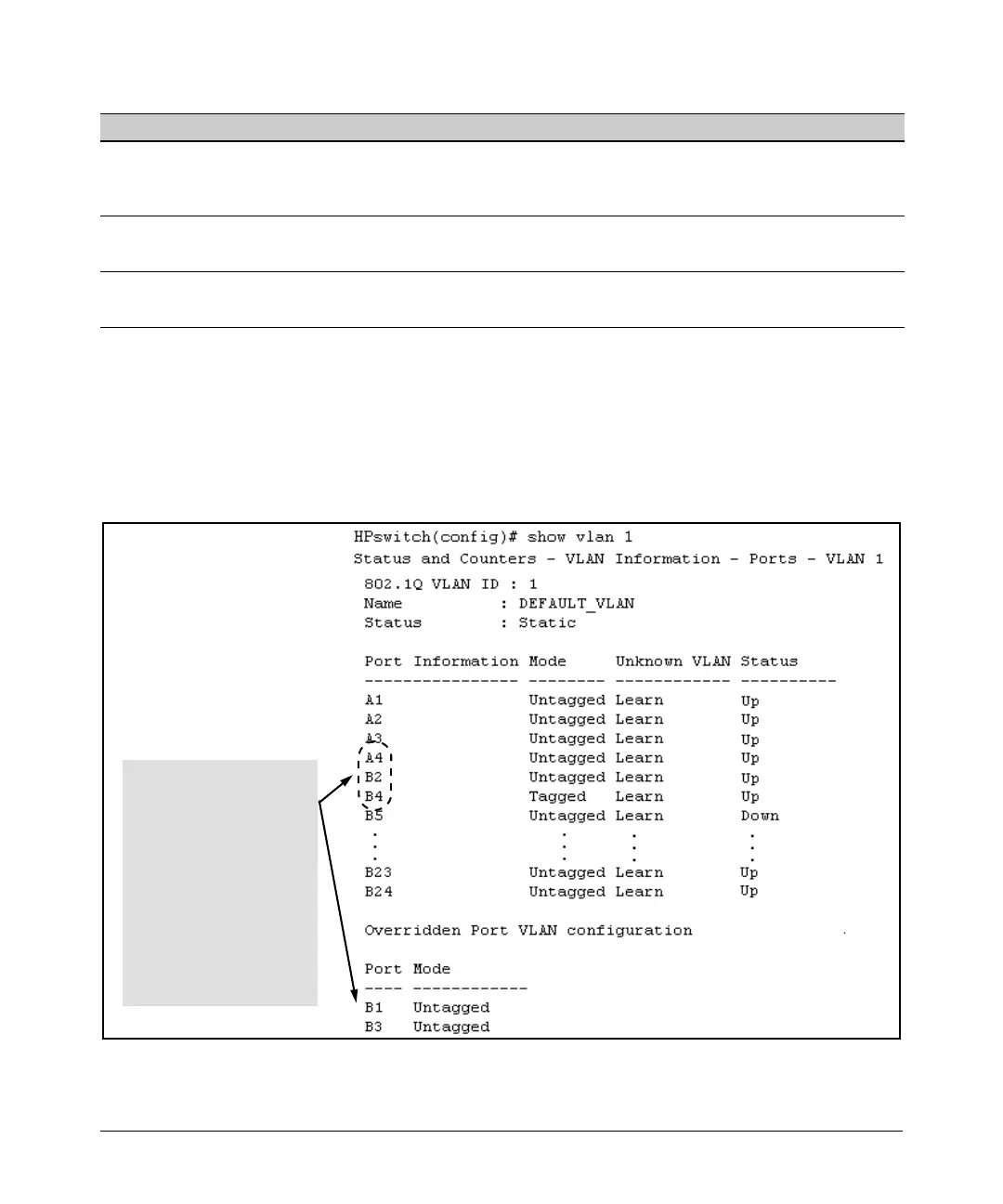

Figure 8-6. Example of Showing a VLAN with Ports Configured for Open VLAN Mode
