Installing the Switch
Installation Procedures
Installing the Switch
2. (Optional) Install or Remove a cl Module
Note Hot swapping modules is not supported. If a module is installed or removed
with the switch powered on, a reset will occur. Only insert or remove a module
during scheduled downtime with the switch powered off.
1. Remove the cover plate
2. Insert the module aligning with the guides in the slot.
3. Once the contacts have engaged, use the extractor handles to seat the
module completely.
4. Tighten the captive screws.
Refer to the cl Module Installation Guide for more details.
If you have installed a media flex module, you can now install a transceiver.
See the following step.

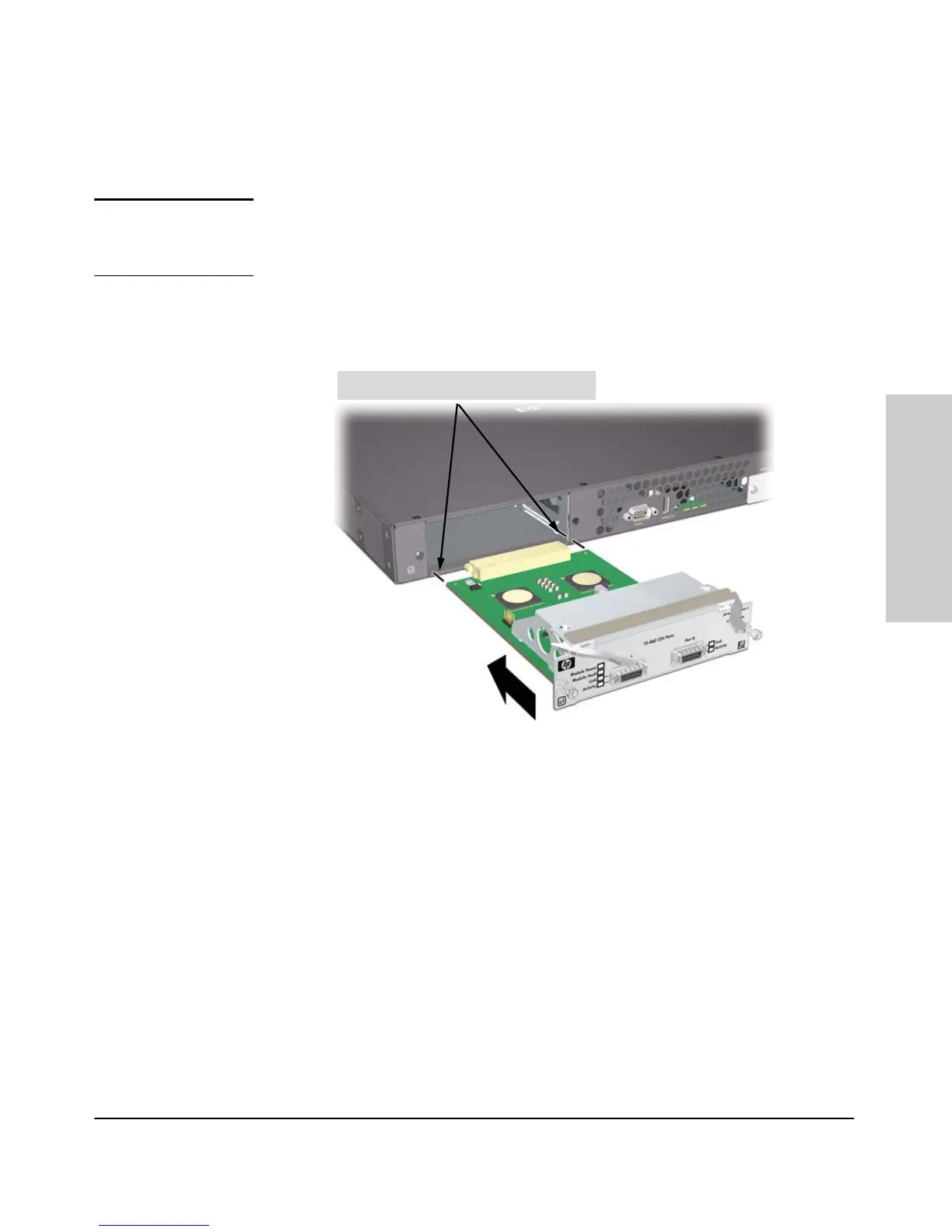

Align the edges of the board with guides
To Next Page
