Installing the Switch
Installation Procedures
Installing the Switch
3. (Optional) Install or Remove a Transceiver
Note Hot swapping transceivers is supported. You can install or remove a trans-
ceiver with the switch powered on, a reset will not occur.
WARNING The ProCurve X2 fiber optic transceivers are Class 1 or Class 1M laser
devices. Avoid direct eye exposure to the beam coming from the
transmit port.

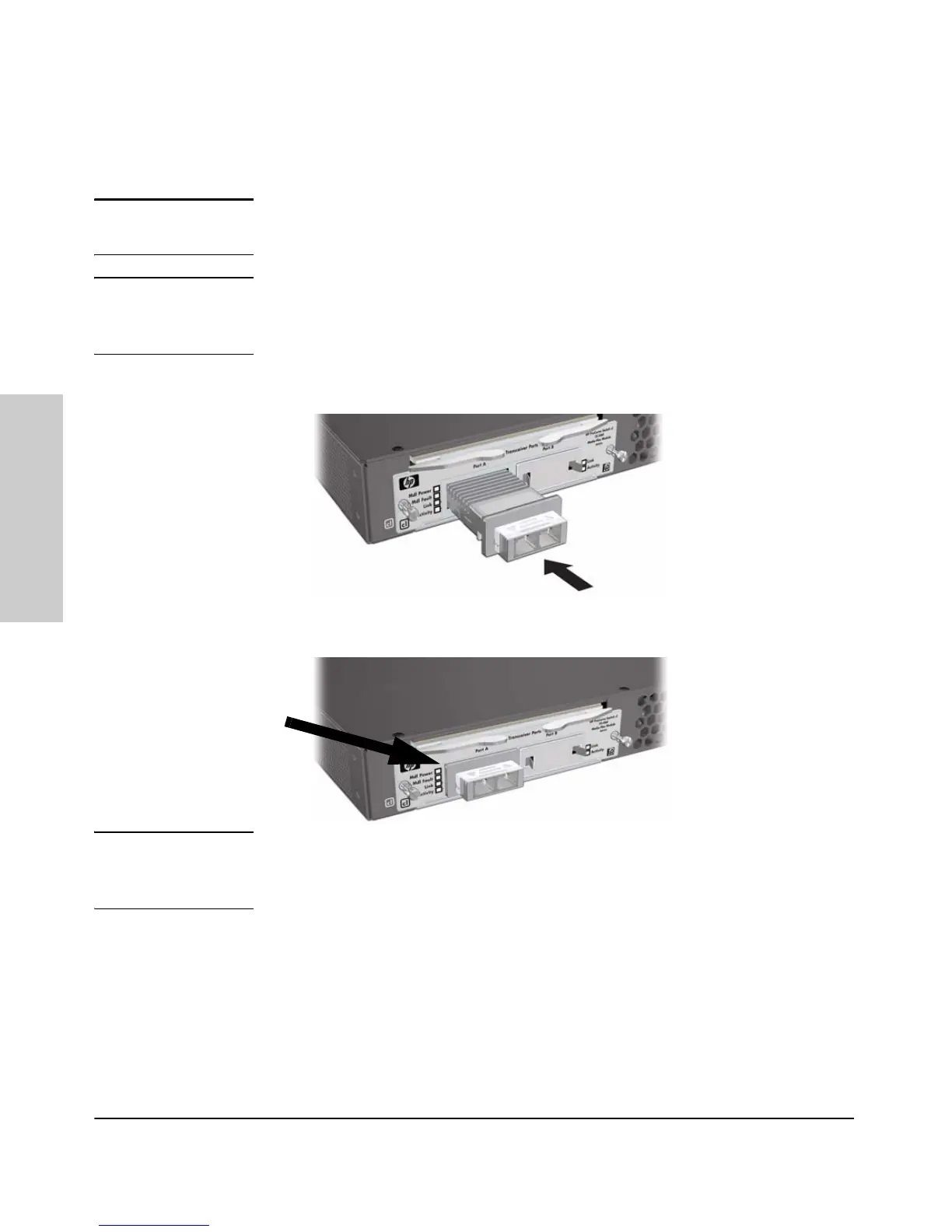

a. Slide the transceiver in until it stops.
b. Push firmly until the gasket seats against the bulkhead.
Note When switch power is on, the Link and Activity LEDs will come on for
approximately two seconds and then go off. This is confirmation the trans-
ceiver is completely seated.
c. If your transceiver has a bail, move the bail up, if not your transceiver is
now completely installed.
Refer to the ProCurve Switch cl Modules Installation Guide for more details.
To remove the transceiver:
If your transceiver has a bail, lower the bail until it is approximately horizontal,
and then using the bail, pull the transceiver from the slot. If your transceiver
does not have a bail, pull the transceiver straight out.
