1-11
Introducing the Switch
Back of the Switch
Introducing the Switch
Back of the Switch

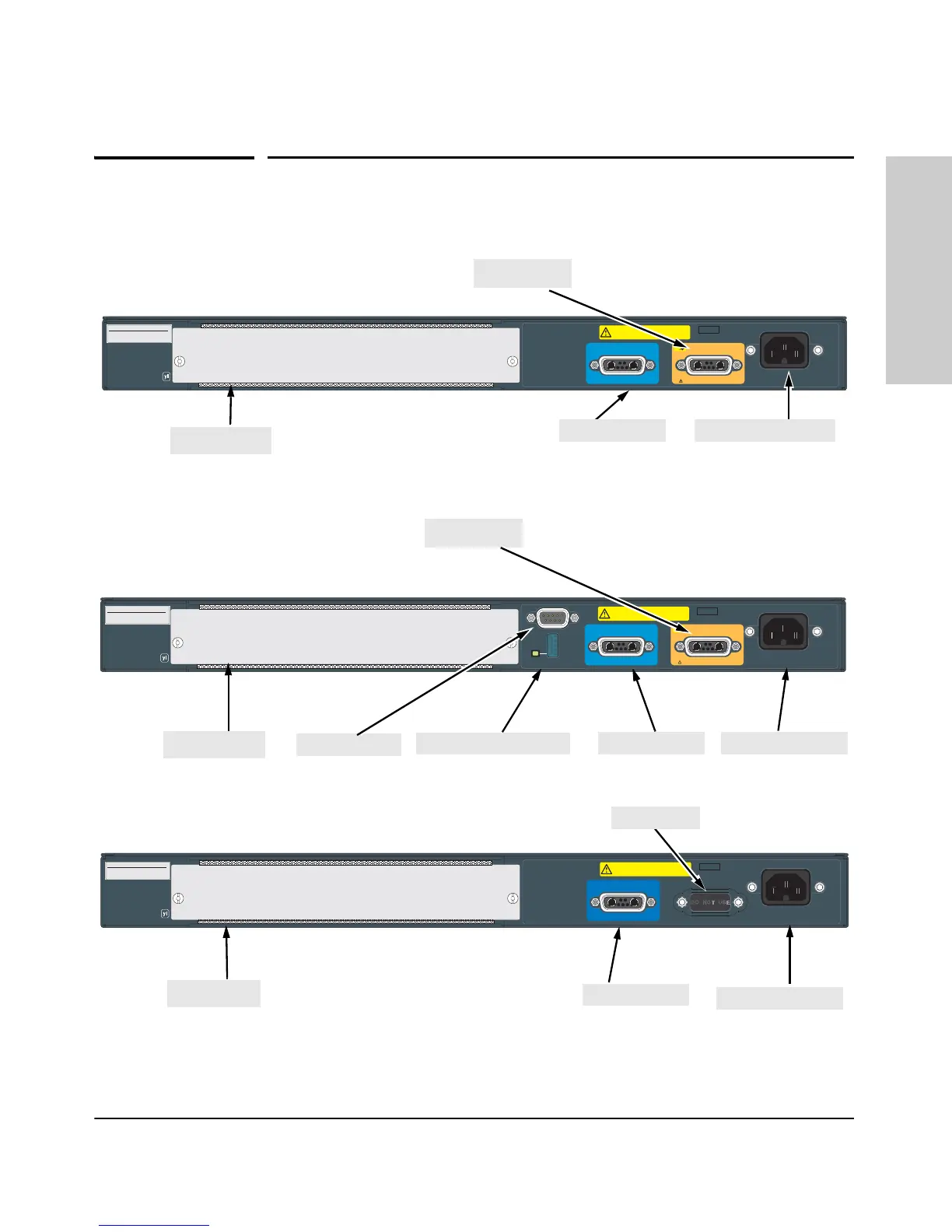

Figure 1-7. Back of the ProCurve Switch 3500yl-24G.
Figure 1-8. Back of the ProCurve Switch 3500yl-48G.
Figure 1-9. Back of the ProCurve Switch 6200yl-24G.
Line: 50/60 Hz.
100-127 V~ 10 A
200-240 V~ 5 A
12V System Power (RPS) Input
50V PoE (EPS) Input
CAUTION: MULTIPLE POWER SOURCES
Disconnect all AC power cords, and EPS and RPS
cables to completely remove power from the unit.
Connect ProCurve 620 EPS only
PoE
123456
Serial No. SG12345678
System MAC
0001e7
Address
yl module slot
EPS Input Port
RPS Input Port
AC power connector
Line: 50/60 Hz.
100-127 V~ 10 A
200-240 V~ 5 A
12V System Power (RPS) Input
Auxiliary Port
Console
50V PoE (EPS) Input
CAUTION: MULTIPLE POWER SOURCES
Disconnect all AC power cords, and EPS and RPS
cables to completely remove power from the unit.
Connect ProCurve 620 EPS only
PoE
123456
Serial No. SG12345678
System MAC
0001e7
Address
EPS Input Port
AC power connector
Console Port
RPS Input Port
Auxiliary Port and LED
yl module slot
Line: 50/60 Hz.
100-127 V~ 10 A
200-240 V~ 5 A
12V System Power (RPS) Input
CAUTION: MULTIPLE POWER SOURCES
Disconnect all AC power cords, and EPS and RPS
cables to completely remove power from the unit.
123456
Serial No. SG12345678
System MAC
0001e7
Address
yl module slot
RPS Input Port
AC power connector
Do Not Use
